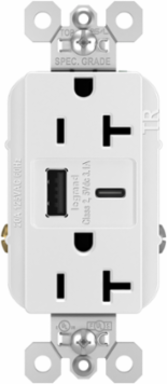

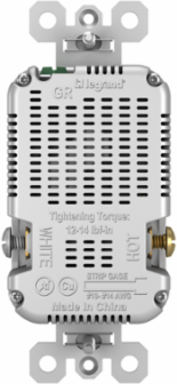

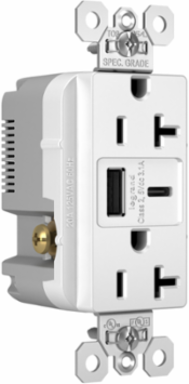

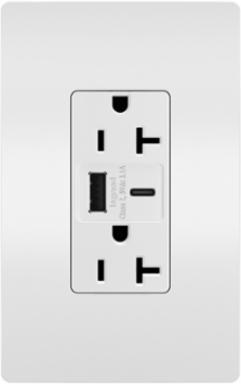

Pass & Seymour TR20USBACW 20A 125V Tamper-Resistant Duplex Receptacle with USB A/C Ports, White, 2.677 Inch Height
- MPN: TR20USBACW
- UPC: 785007181692
- PPN: P-S-TR20USBACW
CAD
$77.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Tamper-Resistant Duplex Receptacle with USB A/C Ports, White, 2.677 Inch Height
Features
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.425 in |
|---|---|
| Height | 2.677 in |
| Width | 1.693 in |
| Standard | FEDSPEC |
| Number of USBs | 2.0 |
| USB Wattage | 15.0 W |
| Indoor/Outdoor | Indoor |
| Frequency Rating | 60 Hz |
| Features | USB-A Charging |
| Is Tamper-Resistant | Yes |
| Number of Receptacles | 2.0 |
| Outlet Type | Tamper-Resistant |
| Connection Location | Side Only |
| Application Sector | Residential |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Finish | Matte |
| Amperage | 20.0 A |
|---|---|
| Voltage | 125.0 V |
| Country of Origin | Vietnam |
| Mounting Type | Box |
| USB Amperage | 3.1 A |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Features | USB-C Charging |
| Outlet Type | USB-Charging |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Application Sector | Multi-Dwelling Unit |
| Operating Temperature Min | -40.0 °C |
| Color | White |
| Product Line | Pass & Seymour |
