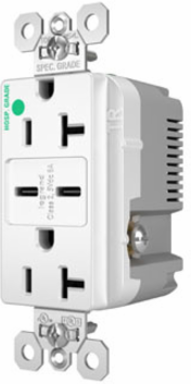

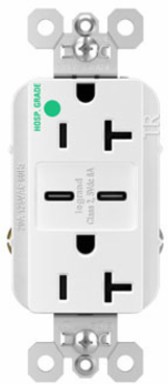

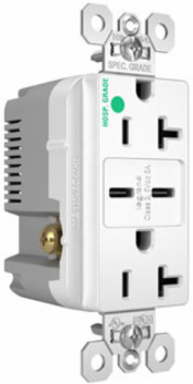

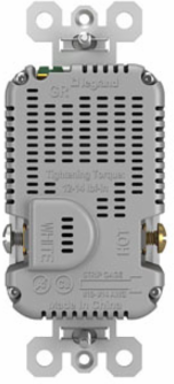

Pass & Seymour TR20HUSBCC6W Hospital-Grade 20A Receptacle with USB C Fast Charging Ports 2.677 Inch Height

MPN: TR20HUSBCC6W
UPC: 785007209952
PPN: P-S-TR20HUSBCC6W

$92.39

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Hospital-Grade 20A Receptacle with USB C Fast Charging Ports 2.677 Inch Height

Features

Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port.
Slim design allows for installation in standard depth wall boxes.
Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.

Documentation & Downloads

Specifications

Key Specifications

Depth	1.425 in
Amperage	20.0 A
Voltage	125.0 V
Country of Origin	China
USB Amperage	6.0 A
Number of Wires	3.0
Wire Size	14 - 10 AWG
Wall Plate Included	No
Is Tamper-Resistant	Yes
Number of Receptacles	2.0
Number of Poles	Double Pole
Application Sector	Commercial
Connection Location	Side Only
Color	White
Wire Connection Type	Screw Terminals
Operating Temperature Max	60.0 °C
Operating Temperature	-40°-60°C

Height	2.677 in
Width	1.693 in
Mounting Type	Box
Number of USBs	2.0
USB Wattage	15.0 W
Indoor/Outdoor	Indoor
Frequency Rating	60 Hz
Features	USB-C Charging
Outlet Type	USB-Charging
Outlet Type	Hospital Grade
Outlet Type	Tamper-Resistant
Application Sector	Healthcare
NEMA Configuration Code	5-20R
Product Line	Pass & Seymour
Warranty Type	1-Year Limited Warranty
Operating Temperature Min	-40.0 °C
