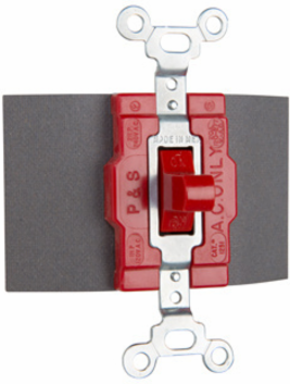

Pass & Seymour 1251RED 20A Single Pole Double Throw Manual Control Switch, Red, 120/277V, 1.5 Inch Width
- MPN: 1251RED
- UPC: 785007026283
- PPN: P-S-1251RED
CAD
$75.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A Single Pole Double Throw Manual Control Switch, Red, 120/277V, 1.5 Inch Width
Features
- Oversize silver alloy contacts for long life and better heat dissipation.
- Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
- Fiber terminal insulation barriers standard.
- Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
- Bodies, covers, and toggles molded of durable nylon.
- Single Pole-Double Throw and Double Pole-Double Throw.
- Locking Switches supplied with one 1498-NT key.
- Normally open.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.469 in
- Load Type
- CFL
- Width
- 1.5 in
- Standard
- RoHS
- Load Type
- Xenon
- Load Type
- Halogen
- Voltage
- 120/277 V
- Switch Type
- Toggle
- Standard
- CSA Listed
- Load Type
- Fluorescent
- Mounting Type
- Wall Box
- Type
- Manual Controller
- Throw Type
- Double Throw
- Requires Neutral Wire
- Yes
- Application Sector
- Commercial
- Connection Location
- Side Only
- Environmental Conditions
- UL94 V2
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- Single Pole, Double Throw Manual Control Switch
- Finish
- Matte
- Product Line
- Pass & Seymour
Height3.281 in
Load TypeLED
Country of OriginMexico
Amperage20.0 A
FeaturesDurable
Number of Gangs1
StandardUL Listed
Load TypeUniversal
Indoor/OutdoorIndoor
Load TypeIncandescent
Number of Switches1.0
Wall Plate IncludedNo
Operating Cycles50000.0
Number of PolesSingle Pole
Application SectorIndustrial
Load Rating20 A @ 120/277 VAC
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
ColorRed
MaterialThermoplastic
