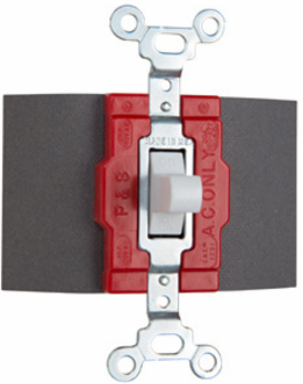

Pass & Seymour 1251W 20A Single Pole Double Throw Manual Control Switch, 120/277V, White
- MPN: 1251W
- UPC: 785007125160
- PPN: P-S-1251W
CAD
$75.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A Single Pole Double Throw Manual Control Switch, 120/277V, White
Features
- Oversize silver alloy contacts for long life and better heat dissipation.
- Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
- Fiber terminal insulation barriers standard.
- Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
- Bodies, covers, and toggles molded of durable nylon.
- Single Pole-Double Throw and Double Pole-Double Throw.
- Locking Switches supplied with one 1498-NT key.
- Normally open.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.469 in
- Color
- White
- Width
- 1.5 in
- Country of Origin
- Mexico
- Load Type
- CFL
- Amperage
- 20.0 A
- Features
- Durable
- Number of Gangs
- 1
- Standard
- UL listed
- Load Type
- Universal
- Load Type
- Fluorescent
- Mounting Type
- Wall Box
- Type
- Manual Controller
- Throw Type
- Double Throw
- Number of Poles
- Single Pole
- Application Sector
- Industrial
- Load Rating
- 20 A @ 120/277 VAC
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- Side wire terminals, Fiber Terminal insulation barrier\
Height3.281 in
FinishMatte
MaterialThermoplastic
Product LinePass & Seymour
Load TypeLED
Load TypeXenon
Load TypeHalogen
Voltage120/277 V
Switch TypeToggle
Indoor/OutdoorIndoor
Load TypeIncandescent
Number of Switches1.0
Wall Plate IncludedNo
Requires Neutral WireYes
Application SectorCommercial
Connection LocationSide Only
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
