Carlo Gavazzi

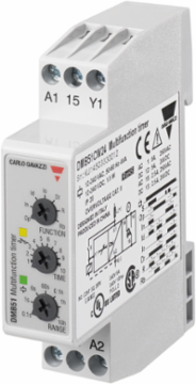

Carlo Gavazzi DMB51CM24 Multifunction Timer, DIN Rail Mount, 67.2mm Depth, 0.1s-100h Time Range, 5A Relay Output

Multifunction Timer, DIN Rail Mount, 67.2mm Depth, 0.1s-100h Time Range, 5A Relay Output
  • MPN: DMB51CM24
  • PPN: CLG-DMB51CM24

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$122.14/ EA

Specifications

Specifications

Type of electric connection
Screw connection
Function delay on de-energization
Yes
Function floating contact on de-energization
No
Function pulse shaping
Yes
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pulse, variable
Yes
Remote operation possible
Yes
Pluggable on auxiliary contact block
No
Rated control supply voltage Us at AC 60HZ
Min.20.4-Max.264
Voltage type for actuating
AC/DC
Number of outputs, delayed, change-over contact
1
With semiconductor output
No
Suitable for front mounting
No
Height
81
With approval according to UL
Yes
Wall mounting/direct mounting
No
Degree of protection (IP)
IP20
Product Main Family Group
Multifunction
Main Filter
Mini DIN-rail
ON delay sub-function
ON delay
Recycler sub-function
Symmetrical recycler
Approvals, marks, declaration
for Europe | for North America
Function delay-on energizationYes
Function floating contact on energizationNo
Function star-deltaNo
Function flashing, starting with pause, fixed timeNo
Clock function, starting with pause, variableYes
With plug-in socketNo
Suitable for remote controlNo
Rated control supply voltage Us at AC 50HZMin.20.4-Max.264
Rated control supply voltage Us at DCMin.20.4-Max.27.6
Time rangeMin.0.1-Max.360000
Outputs, reversible delayed/undelayedNo
Suitable for DIN rail (top hat rail) mountingNo
Width17.5
Depth67.2
Rail mounting possibleYes
Front build in possibleNo
Product Main FamilyTimers
Web ClassON delay | OFF delay | Interval | Recycler | Multifunction
Trigger inputYes
Interval sub-functionInterval | Double interval | Interval on trigger open
Output1 relay
