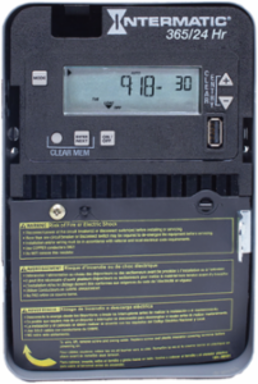

Intermatic ET2105C 24-Hour/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST
- MPN: ET2105C
- UPC: 078275147959
- PPN: INT-ET2105C
- UNSPSC: 39122208
CAD
$288.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. These are 24-hour timers.
Features
- 100-hour supercapacitor eliminates the need for batteries.
- Up to 96 set points or events.
- Up to 50 holiday blocks with schedule capabilities.
- Automatic input voltage selection from 120 to 277 VAC, 60 Hz.
- Additional mode of operation turns the ON/OFF buttons into 2-hour overrides.
- Configurable outputs allow the control of various voltages and applications.
- Relays incorporate zero-crossing technology to extend the life of the control.
- Non-volatile EEPROM memory protects programming indefinitely.
- LED compatible.
- USB port makes transferring and saving of schedules easy.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 120-277 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. These are 24-hour timers.
- Width
- 5.125 in
- Country of Origin
- Mexico
Warranty Period2-Year limited
ApplicationsIndoor Lighting Control;Machinery & Pump Controls;Timing/Scheduling ON/OFF
Height7.875 in
Depth3.437 in
