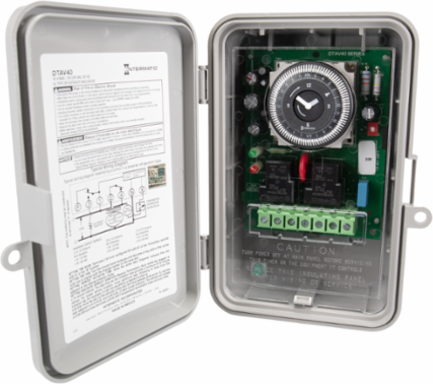

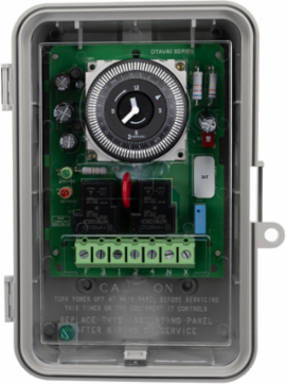

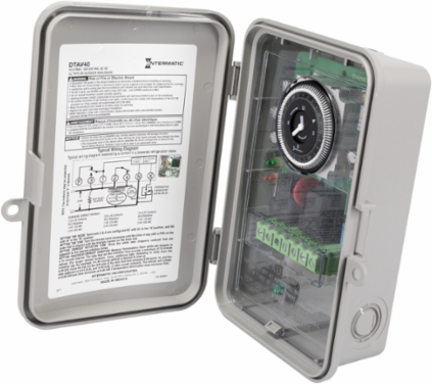

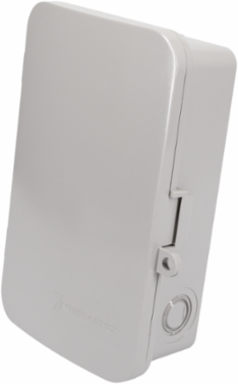

Intermatic DTAV40 Electromechanical Defrost Timer, Auto Voltage, 120/240 VAC
- MPN: DTAV40
- UPC: 078275125162
- PPN: INT-DTAV40
- UNSPSC: 39122208
CAD
$177.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.
Features
- Improved relay performance
- Automatically detects and adjusts input voltages (120-240 VAC)
- Moisture resistant conformal-coated board
- Time Initiated, Temperature, Pressure or Time Terminated
- Captive trippers are field adjustable to 15-minute intervals
- No tools required – snaps into alternative enclosures
- LED indicators for defrost and refrigeration cycles
- Defrost cycles are programmed independently
- Real-time clock face for quick, easy and accurate setting
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 120/240 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- For electric heat, hot gas or compressor shutdown defrost. The DTAV40 Series Auto Voltage Defrost Timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.
Warranty Period1-Year limited
ApplicationsWalk-in Refrigeration Cooler/Freezer
Country of OriginMexico
