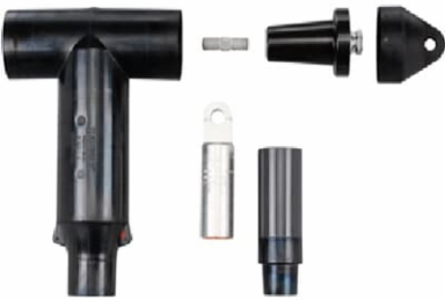

Thomas & Betts K675LR-L2330-SG3 25KV 900A ELBOW DB W-SEALING SG3

MPN: K675LR-L2330-SG3
UPC: 075114430814
PPN: T-B-K675LR-L2330-SG3
UNSPSC: 39121421

$1221.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Features

Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Buy American Act (BAA) Compliant	Contact Manufacturer
Brand Name	ELASTIMOLD
Connection	Compression
Size	10.36 inch Wide x 13.00 inch from bottom to center of Bushing
Material	Housing - EPDM Rubber
Color	Black
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather Conditions, Fully Submersible

American Recovery and Reinvestment Act (ARRA) Compliant	Contact Manufacturer
IGCC	4586
Application	Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
Standard	ANSI/IEEE Standard 386
Conductor Range	500 kcmil , 600 kcmil
Voltage Rating	15 to 25 kV
Amperage Rating	900 A
Temperature Rating	-40 to +65 C
