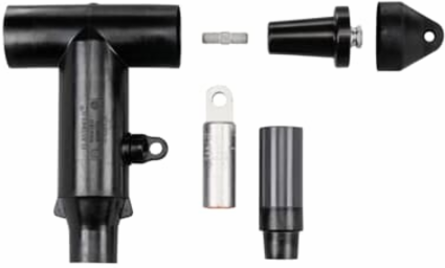

Thomas & Betts K656LR-N0410-SG3 25KV 600A ELBOW W-SEALING KIT
- MPN: K656LR-N0410-SG3
- UPC: 075114396639
- PPN: T-B-K656LR-N0410-SG3
- UNSPSC: 39121421
CAD
$1006.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Amp Series Deadbreak Elbow with Test Point and Sealing Kit (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed/Stranded 1000. Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring Included.
Features
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 15/25kV, 600 Amp Deadbreak Elbow Connection |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 1000 kcmil |
| Voltage Rating | 15 to 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
