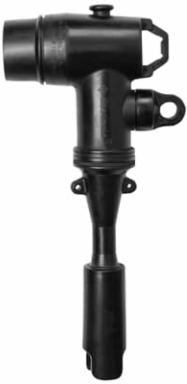

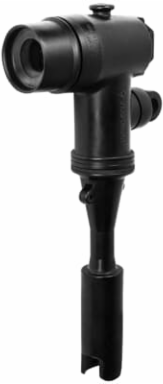

Thomas & Betts 252LRJS-C5250 25KV DB ELBOW W-JACKET SEAL
- MPN: 252LRJS-C5250
- UPC: 075114387323
- PPN: T-B-252LRJS-C5250
- UNSPSC: 39121421
CAD
$258.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, with Jacket Seal, Cable Insulation Diameter - .805-1.060 inch. Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed or 3/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Features
- Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Compression |
| Size | Cable Insulation Diameter - .805-1.060 inch |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 15/25kV, 200 Amp Deadbreak Connection |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG |
| Voltage Rating | 15 to 35 kV |
| Amperage Rating | 200 A |
| Temperature Rating | -40 to +65 C |
