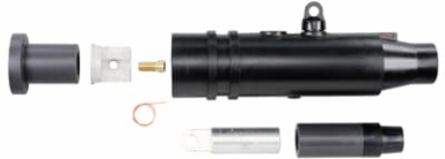

Thomas & Betts K656SR-J2270-SG3 15/25KV 600A DB TP STR REC J2270SG3

MPN: K656SR-J2270-SG3
UPC: 075114396684
PPN: T-B-K656SR-J2270-SG3
UNSPSC: 39121421

$1754.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV, 600 Amp, Deadbreak Elbow without Test Point. Cable Insulation Diameter Range 0.980 to 1.180 inch, Conductor Size Compressed/Stranded 4/0 or Compact/Solid 250 kcmil. Copper Lug. Sealing Kit - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.

Features

Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Buy American Act (BAA) Compliant	Contact Manufacturer
Brand Name	ELASTIMOLD
Connection	Compression
Size	Diameter 4.19 inch x Length 16.98 inch
Material	Housing - EPDM Rubber
Color	Black
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather Conditions, Fully Submersible

American Recovery and Reinvestment Act (ARRA) Compliant	Contact Manufacturer
IGCC	4586
Application	15/25kV, 600 Amps
Standard	ANSI/IEEE Standard 386
Conductor Range	4/0 STR/COMPR AWG , 250 kcmil , 125 mm2
Voltage Rating	15 to 25 kV
Amperage Rating	600 A
Temperature Rating	-40 to +65 C
