15/25KV 600A DB TP STR REC L2230SG3
Thomas & Betts

Thomas & Betts K656SR-L2230-SG3 15/25KV 600A DB TP STR REC L2230SG3

  • MPN: K656SR-L2230-SG3
  • UPC: 075114396691
  • PPN: T-B-K656SR-L2230-SG3
  • UNSPSC: 39121421

CAD

$2089.58

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

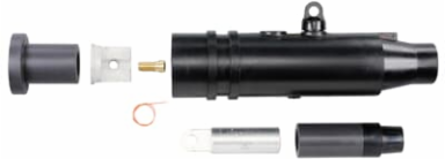

15/25kV, 600 Amp, Deadbreak Elbow without Test Point. Cable Insulation Diameter Range 1.180 to 1.465 inch, Conductor Size #1 AWG Stranded or Compressed. 1/0 AWG Solid or Compact. Copper Lug. Sealing Kit - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.

Features

  • Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
Diameter 4.19 inch x Length 16.98 inch
Material
Housing - EPDM Rubber
Color
Black
Insulation
Yes EPDM Rubber
Environmental Conditions
All Weather Conditions, Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15/25kV, 600 Amps
StandardANSI/IEEE Standard 386
Conductor Range#1 STR/COMPR AWG , 1/0 SOL/COMPT AWG
Voltage Rating15 to 25 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
