35KV 900A ELBOW DB W-SEALING KIT
Thomas & Betts

Thomas & Betts 756LR-K2270-SG3 35KV 900A ELBOW DB W-SEALING KIT

  • MPN: 756LR-K2270-SG3
  • UPC: 075114431187
  • PPN: T-B-756LR-K2270-SG3
  • UNSPSC: 39121421

CAD

$1373.60

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

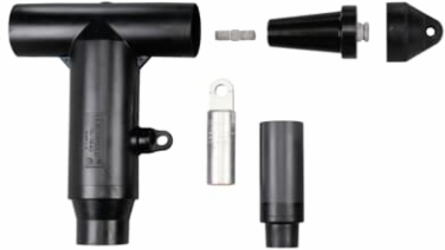

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed-Stranded 4/0 AWG Compacted-Solid 250 kcmil. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Features

  • 35kV, 600 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
Width 12.28 inches, 13.93 inches from Bottom Edge to Center of Installation O-Ring
Material
Housing - EPDM Rubber
Color
Black
Insulation
Yes, EPDM Rubber
Environmental Conditions
Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application35 kv, 600 Amp
StandardANSI/IEEE Standard 386
Conductor Range4/0 STR/COMPR AWG , 250 SOL/COMPT kcmil
Voltage Rating35 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
