Thomas & Betts K655LR-K0360-SG3 25KV 600A ELBOW W-SEALING KIT
- MPN: K655LR-K0360-SG3
- UPC: 075114399722
- PPN: T-B-K655LR-K0360-SG3
- UNSPSC: 39121421
CAD
$953.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

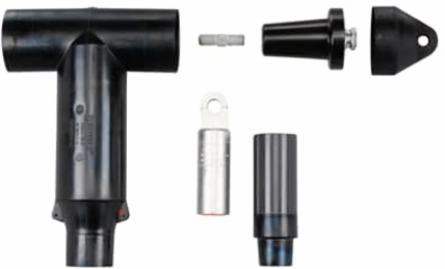

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 650 or Compact/Solid 750/800 kcmil. Cold-Shrinkable Jacket Seal with Copper Braid and Constant Force Spring Included.
Features
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
StandardANSI/IEEE Standard 386
Conductor Range650 kcmil , 750 to 800 kcmil
Voltage Rating15 to 25 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
