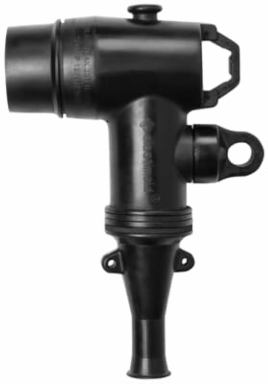

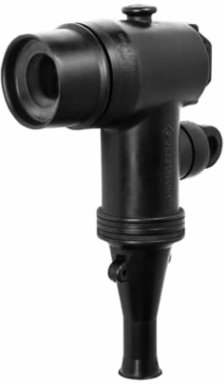

Thomas & Betts 252LR-E2120-G 25KV DB IEC - ELBOW NO-SEALING KIT

MPN: 252LR-E2120-G
UPC: 075114392181
PPN: T-B-252LR-E2120-G
UNSPSC: 39121421

$387.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

12/20kV (24 kV), IEC 250 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.09-1.31 inches (27.48-33.27mm), Copper Lug, Conductor Size 120 mm2. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Standard Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter. Includes Bonding/Grounding Wire. IEC 60502-4, CEN 629.1 S2.

Features

Fully Shielded, fully Submersible Molded Rubber Housing. Provision for Hot Stick Operation. Non-Corrosive, Capacitive Test Point. Includes Bonding/Grounding Wire

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Buy American Act (BAA) Compliant	Contact Manufacturer
Brand Name	Elastimold
Connection	Compression
Size	Length 7.531 inch from bottom edge to center of Installation O-Ring. Width 5.454 inch
Material	Housing - EPDM Rubber
Color	Black
Insulation	Yes EPDM Rubber
Environmental Conditions	Fully Submersible

American Recovery and Reinvestment Act (ARRA) Compliant	Contact Manufacturer
IGCC	4586
Application	15/25kV, 250 Amp Deadbreak Connector
Standard	IEC 60502-4, CEN 629.1 S2
Conductor Range	120 mm2
Voltage Rating	15 to 25 kV
Amperage Rating	250 A
Temperature Rating	-40 to +65 C
