Thomas & Betts 755ETP-N0360-DRG 35KV 600A ETP ELBOW KIT M0360-DRG
- MPN: 755ETP-N0360-DRG
- UPC: 075114403436
- PPN: T-B-755ETP-N0360-DRG
- UNSPSC: 39121421
CAD
$1757.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

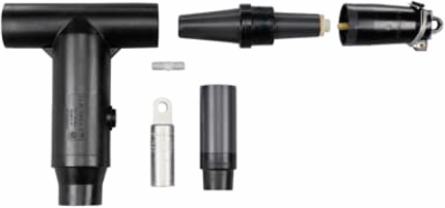

600 Amp, 35kV, Deadbreak, Test and Ground Connector kit, includes Insulated cap, reducing tap plug, elbow housing, cable adapter and 0370 style compression lug. 600ATM assembly tool required, 50-60 foot/pounds torque wrench required but not included. Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed Stranded 500 kcmil or Compacted Solid 600 I
Features
- Includes Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Compression |
| Size | Body 10.16 inch wide x 13.93 long from bottom of edge to center of bushing insert |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 35kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 500 STR/COMPR kcmil , 600 SOL/COMPT kcmil |
| Voltage Rating | 35 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
