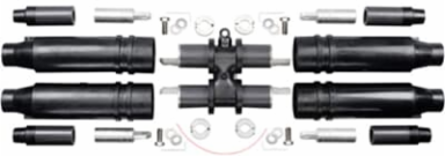

Thomas & Betts K656CH-G0250-SG1 25KV 600A CH SPLICE W-SEALING KITS
- MPN: K656CH-G0250-SG1
- UPC: 075114359610
- PPN: T-B-K656CH-G0250-SG1
- UNSPSC: 39121421
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
600 Amp, 15/25 kV, Deadbreak Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter G - 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted Solid 3/0. Includes SG1 - Cold-Shrinkable Seal with Copper Rod and Crimp Connector.
Features
- Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs. Cold-Shrinkable Seal with Copper Rod and Crimp Connector
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Compression |
| Size | Overall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | Compact Design is suitable for Small Vaults and Manholes |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 2/0 COMPR/STR AWG , 3/0 COMPT/SOL AWG |
| Voltage Rating | 15 to 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
