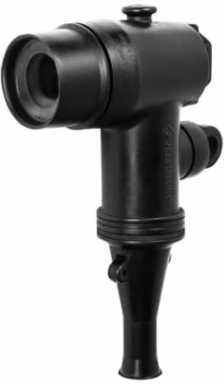

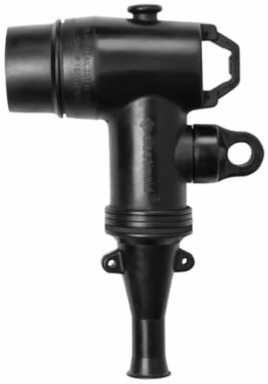

Thomas & Betts 252LR-B5240-S 25KV 200A DB ELBOW W-SEALING KIT
- MPN: 252LR-B5240-S
- UPC: 075114392891
- PPN: T-B-252LR-B5240-S
- UNSPSC: 39121421
CAD
$303.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .635-.905 inch. Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide. Cold-Shrinkable Jacket Seal.
Features
- Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools. Cold-Shrinkable Jacket Seal
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 15/25kV, 200 Amp Deadbreak Connection |
| Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
| Voltage Rating | 25 kV |
| Amperage Rating | 200 A |
| Temperature Rating | -40 to +65 C |
