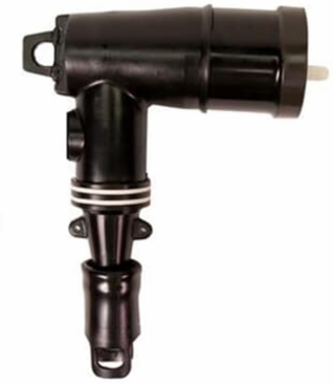

15KV 200A ELBOW, NO SEALING KIT
Thomas & Betts

Thomas & Betts 161LRJS-D5260 15KV 200A ELBOW, NO SEALING KIT

  • MPN: 161LRJS-D5260
  • UPC: 075114418232
  • PPN: T-B-161LRJS-D5260
  • UNSPSC: 39121421

CAD

$224.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .890 inch - 1.220 Inch Cable Insulation Diameter, 3/0 Stranded or 4/0 Solid AWG Wire Size, Bi-Metal Compression Lug

Features

  • Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Conductor Range
3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG
Voltage Rating
15 kV
Amperage Rating
200 A
Temperature Rating
-40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationThe 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems
StandardANSI/IEEE Standard 386
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes, EPDM Rubber
Environmental Conditionsed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water
