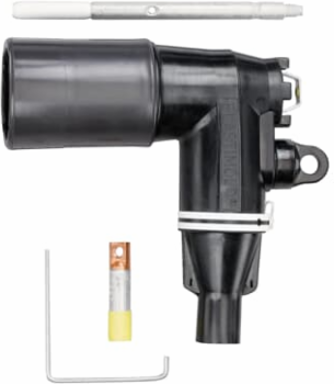

Thomas & Betts 376LR-H-2240-S 35KV LB ELBOW 200A W-SEALING KIT
- MPN: 376LR-H-2240-S
- UPC: 075114409537
- PPN: T-B-376LR-H-2240-S
- UNSPSC: 39121421
CAD
$952.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point and Sealing Kit, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS Jacket Seal Included.
Features
- 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Non-Corrosive Capacitive Voltage Test Point
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Push-In |
| Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
| Voltage Rating | 35 kV |
| Amperage Rating | 200 A |
| Temperature Rating | -40 to +65 C |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 35 kv, 200 Amp |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
