Tripp Lite PDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (18 C13/2 C19), C20/L6-20P, 0U 90cm/35.5 in., TAA
Tripp Lite PDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (18 C13/2 C19), C20/L6-20P, 0U 90cm/35.5 in., TAA
- MPN: PDUMNV20HV2LX
- UPC: 037332205346
- PPN: TRP-PDUMNV20HV2LX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$990.75/ EA
Description
3.3/3.7kW 0U PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features

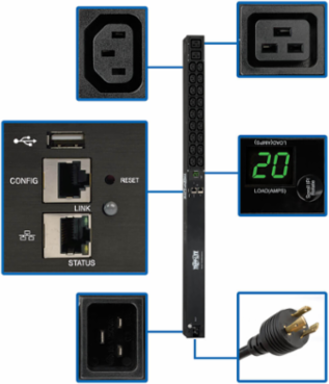

- 3.3/3.7kW 208/230V single-phase monitored 90cm 0U PDU

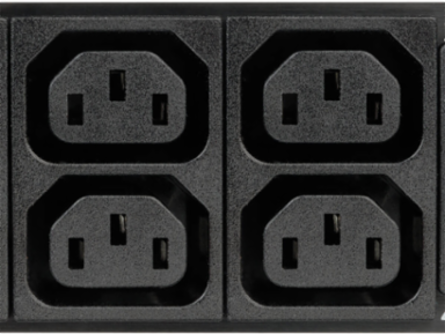

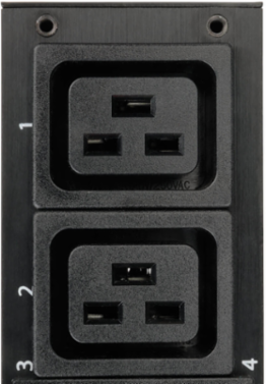

- 20 outlets—18 C13, 2 C19—with plug-lock insert sleeves

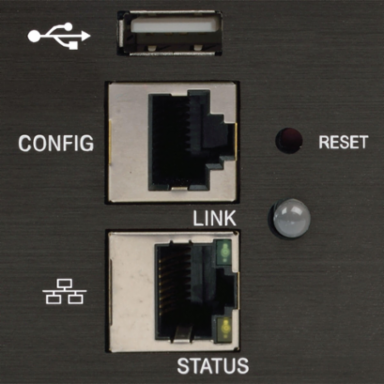

- Built-in Java-free LX Platform interface for remote access 24/7
- Digital ammeter for on-site load monitoring in real time

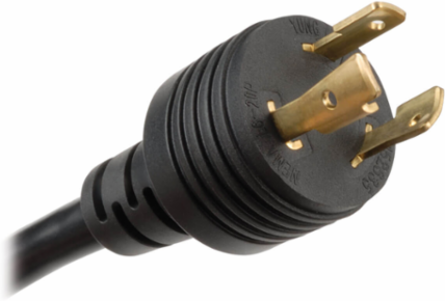

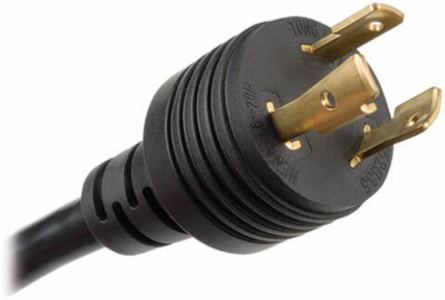

- C20 inlet input with detachable 10 ft. NEMA L6-20P power cord
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1:2007, IEC60950-1: 2005 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), CE IEC60950-1:2005, EN55022:2010+2011, EN55024:2010 (International), FCC Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

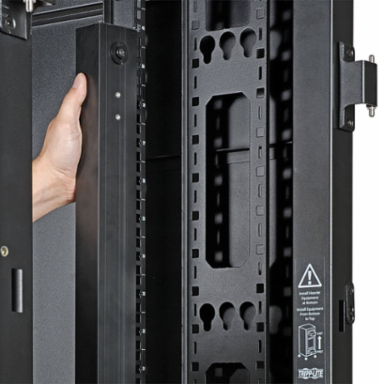

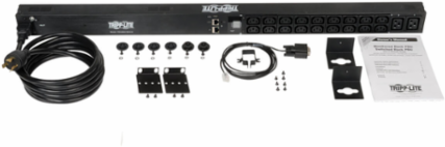

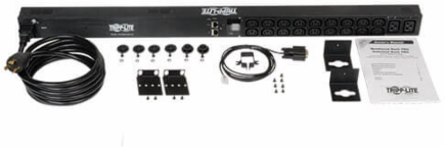

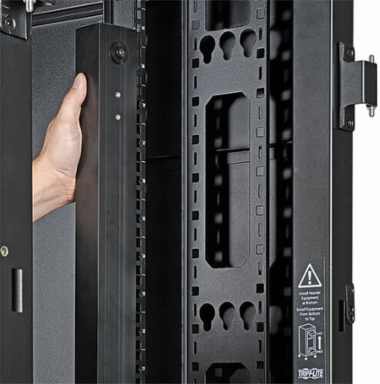

- 0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
- Shipping Dimensions (hwd / in.)
- 42.00 x 6.20 x 4.50
- Unit Dimensions (hwd / in.)
- 35.5 x 2.2 x 1.85
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)11.50
Unit Weight (lbs.)6.5
User Interface, Alerts & Controls

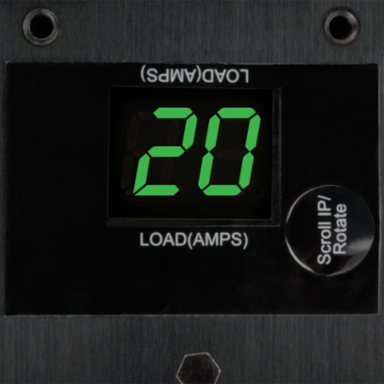

- Front Panel LCD Display
- Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
- Switches
- Press the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees
Front Panel LEDsn/a
Input
- PDU Input Voltage
- 208; 230
- Maximum Input Amps
- 20

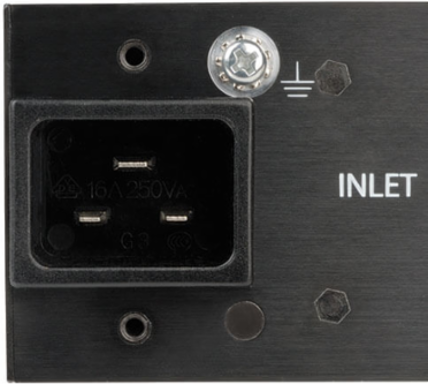

- Input Connection Type

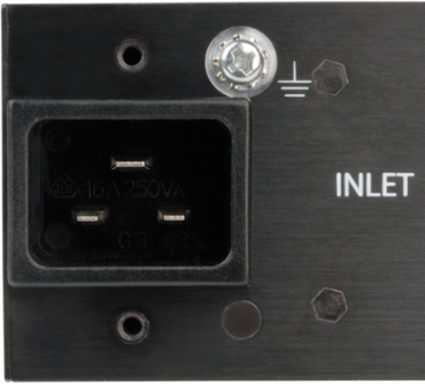

- C20 inlet accepts included L6-20P input cable. Alternate C19 input cordsets supported.
- Input Phase
- Single-Phase
Recommended Electrical Service20A 208V; 16A 230V
Maximum Input Amps DetailsAgency derated to 16A continuous
PDU Plug TypeNEMA L6-20P; IEC-320 C20
Input Cord Length (ft.)10
Output
- Frequency Compatibility
- 50 / 60 Hz

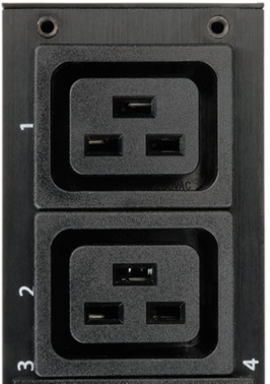

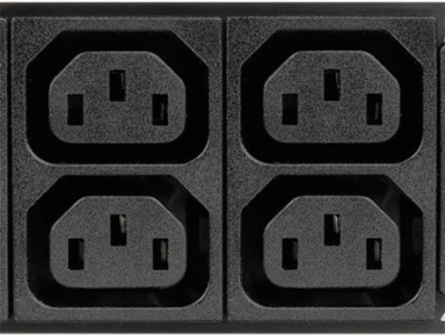

- Output Receptacles
- (18) C13; (2) C19
- Overload Protection
- n/a
Output Capacity Details3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Output Nominal Voltage208; 230
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332205346
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
