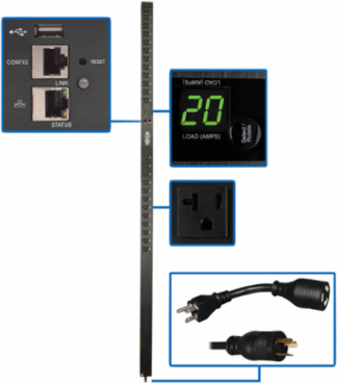

Tripp Lite PDUMNV20LX 1.9kW Monitored 0U Vertical PDU, 24 NEMA 5-15/20R Outlets, 70 Inch
- MPN: PDUMNV20LX
- UPC: 037332205308
- PPN: TRP-PDUMNV20LX
CAD
$1061.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cost-effective 1.9kW PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in network interface helps monitor load levels to prevent overloads that cause downtime.
Features
- 1.9kW 120V 20A monitored PDU

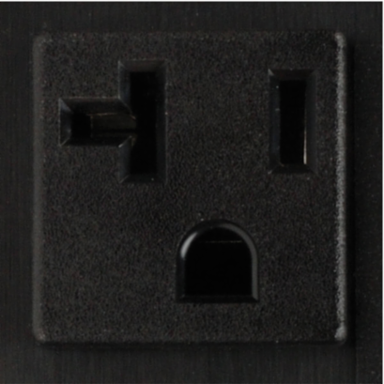

- 24 NEMA 5-15/20R outlets with cord retention brackets

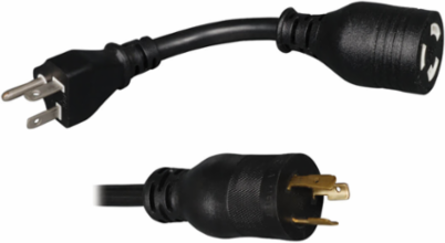

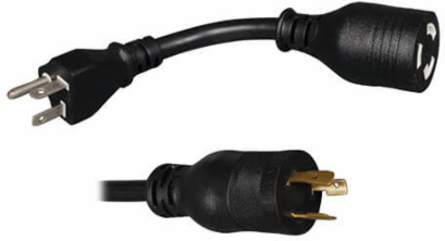

- NEMA L5-20P input with 5-20P adapter and 10 ft. AC power cord

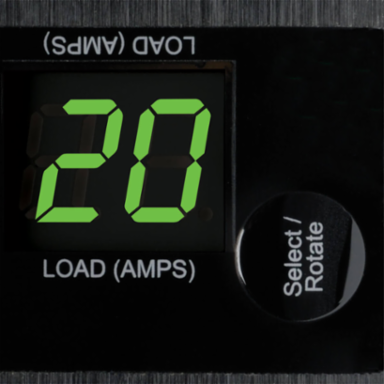

- Digital ammeter for on-site load monitoring in real time
- Built-in LX Platform interface for remote access
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 1.9kW
- Current
- 20 A
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (24) NEMA 5-15/20R outlets
- Dimensions (H x W x D)
- 70 x 2.19 x 1.75 in
- Input Cord Length
- 10 ft
- Material
- Metal
- Relative Humidity
- 5-95% non-condensing
- Compliance
- UL/CAN 60950-1, FCC Class A, NOM, RoHS, TAA
- Network Interface
- Built-in Java-free HTML5 LX Platform
Voltage100 V, 120 V, 127 V
Input PhaseSingle-Phase
Output Capacity2.03 kW (127 V), 1.92 kW (120 V), 1.6 kW (100 V), 20A total, 16A max per outlet

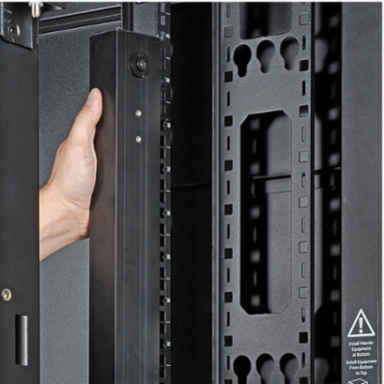

Mounting Type0U vertical rackmount, toolless button-mount compatible racks
Weight12.2 lbs
Input Plug TypeNEMA 5-20P and NEMA L5-20P
DisplayDigital ammeter for real-time load monitoring, front panel LCD with 180° rotation
Storage Temperature Range-30°C to +50°C (-22°F to +122°F)
Communications ProtocolsHTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, NTP
Warranty2-year limited
