Tripp Lite PDUMV40 3.8kW Single-Phase Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10ft Cord, 0U Vertical
Tripp Lite PDUMV40 3.8kW Single-Phase Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10ft Cord, 0U Vertical
- MPN: PDUMV40
- UPC: 037332132505
- PPN: TRP-PDUMV40
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$790.26/ EA
Description
3.8kW Single-Phase Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10ft Cord, 0U Vertical
Features
- Dual Circuit 71 inch PDU
- Dual Independent Current Monitoring Displays

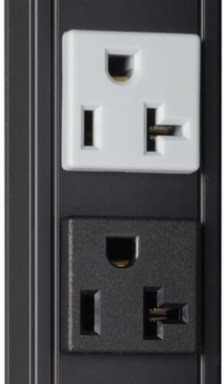

- 32 NEMA 5-15/20R 120V outlets color coded for each circuit
- Two 20A independent circuits of 16 outlets each
- Color-coded input power cords for each circuit

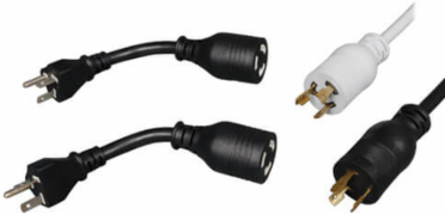

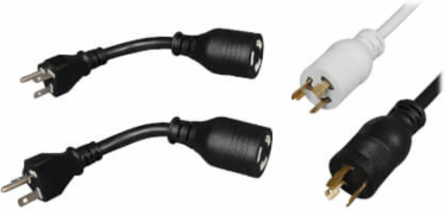

- Supports connection to NEMA L5-20R or 5-20R 120V 20A wall receptacle
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL 60950-1: 2007 R10.14 (USA) and CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), RoHS Compliant
Physical
- Form Factors Supported
- Zero U vertical rackmount, wall-mount, raceway, workbench and more
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 9.61
- Unit Weight (lbs.)
- 8.48
Material of ConstructionAluminum
Shipping Dimensions (hwd / in.)2.40 x 4.80 x 72.44
Unit Dimensions (hwd / in.)71.24 x 1.5 x 3.34
User Interface, Alerts & Controls
- Front Panel LCD Display

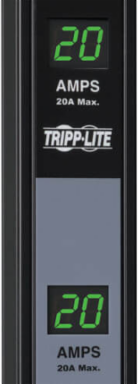

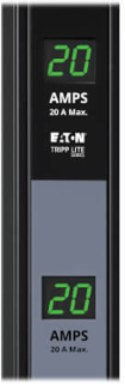

- Set of 2 digital current meters reports PDU output current in amps; Gray color-coded meter reports output amps from gray color outlets (16A max); Black color-coded meter reports output amps from black color outlets (16A max)
- Switches
- n/a
Front Panel LEDsn/a
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 40
- PDU Plug Type
- NEMA 5-20P; NEMA L5-20P
- Input Cord Length (ft.)
- 10
Recommended Electrical ServiceTwo 20A 120V circuits
Maximum Input Amps DetailsEach circuit supports 20A maximum (Agency de-rated to 16A continuous)
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (32) 5-15/20R
- Overload Protection
- 2 x 20A circuit breakers; Grey-color circuit breaker protects grey-color outlets; Black-color circuit breaker protects black-color outlets
Output Capacity Details3.8kW total - 1.9kW per circuit (120V); 4.0kW total - 2.0kW per circuit (127V); 3.2kW total - 1.6kW per circuit (100V); 40A maximum total - 20A maximum per circuit (Agency de-rated to 32A continuous total, 16A per circuit); 16A max per 5-15/20R outlet
Output Nominal Voltage100; 120; 127
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Overview
- UPC Code
- 037332132505
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
