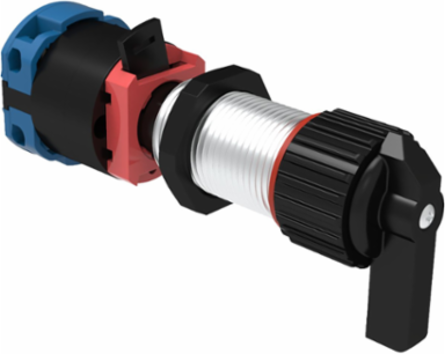

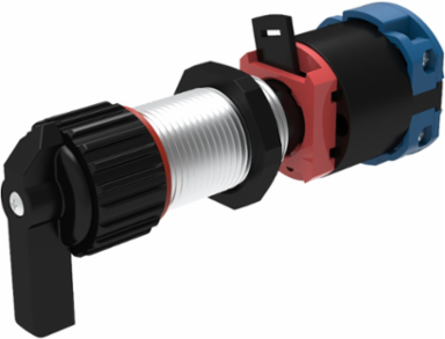

Killark GZ5-3C3 3 Position 1 Pole Double Throw Selector Switch, Long Length 6.7 Inch x 1.8 Inch, 20 A
- MPN: GZ5-3C3
- UPC: 783936176321
- PPN: HBL-GZ5-3C3
- UNSPSC: 39122216
CAD
$938.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3 Position 1 Pole Double Throw w/ OFF Selector Switch - Long Length 40mm, 3/4 NPSM
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread and M22x1.5 on request.
- Control operators can be grouped into a single assembly thus reducing installation time and cost.
- Killark GZ SERIES Operators are a component for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
Specifications
Key Specifications
- Number of Poles
- 2
- Special Features
- Killark GZ SERIES Operators are a component for use in conjunction with a Hazardous Location enclosure to provide control solutions for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified. ATEX/IECEx certified components. See Product Details for certificate numbers.
- Country of Origin
- Brazil
- Dimensions
- 6.7 in x 1.8 in x 1.8 in
- Height
- 1.8 in
- Weight
- 0.40 lb.
- Engineering Drawing 1 Display Text
- GZ Series Dimensional Drawings
- Amperage Rating
- 20 A
- Nema Rating
- Type 4X
- Type
- Selector Switch
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D25D250
- Series
- GZ Series
- BOX SIZE
- (in)
- NAICS Code
- 3359326103
Size6.7 in x 1.8 in x 1.8 in
ARRA CompliantContact Manufacturer
ColorBlack
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22;II 2 G Ex db IIC/IIB+H2Gb;II 2 D Ex tb IIIC Db
Length6.7 in
Width1.8 in
ActionRotary
Frequency Rating50/60 Hz
Number Of Poles2
Class CodeD25
Harmonization Code8536509901
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936176321
