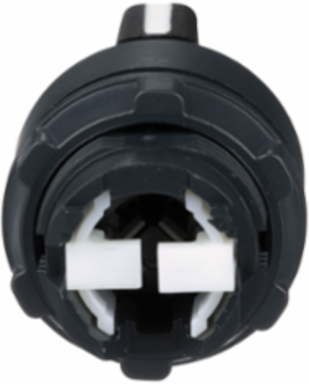

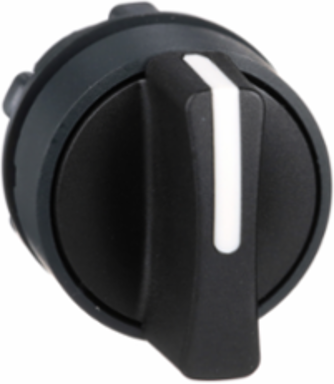

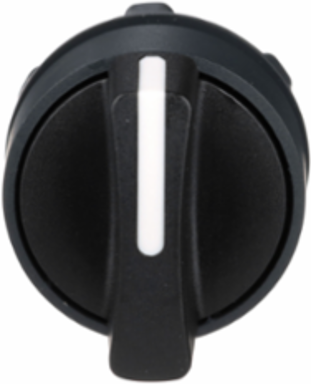

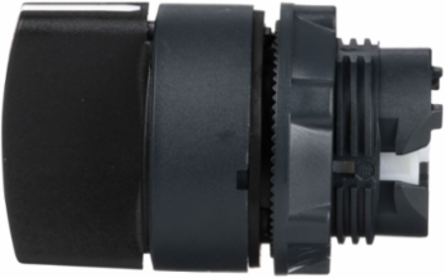

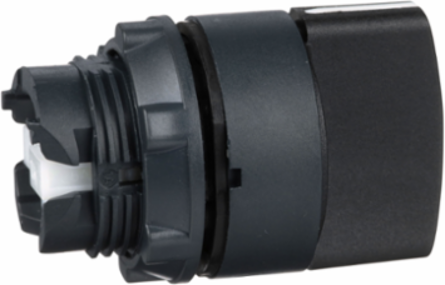

Schneider Electric ZB5AD3 Harmony XB5 Selector Switch Head, 22mm, 3 Positions, IP69K
- MPN: ZB5AD3
- PPN: SCH-ZB5AD3
CAD
$25.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- ngineered with a highly reliable "stay put" mechanism, this selector switch head continuously holds its state across three distinct positions until manually adjusted by an operator. This guarantees that complex manufacturing processes, multi-speed motor controls, and Hand-Off-Auto (HOA) machinery functions remain securely locked in the correct operating mode without requiring constant user supervision.
- Designed specifically for the industry-standard 22mm pushbutton knockout, this Harmony XB5 component seamlessly integrates into existing electrical enclosures, motor control centers, and pendant stations. By utilizing Schneider's modular snap-on architecture, it allows panel builders to easily mate the head with various contact blocks, drastically reducing tool-free installation time during facility retrofits.
- Constructed with a high-strength, chemical-resistant plastic bezel, this switch operator provides ultimate defense against fine dust, corrosive coolants, and high-temperature water jets. Rated for extreme NEMA 4X and IP69K washdown environments, it prevents destructive internal water ingress, making it the perfect fail-safe interface for rigorous food and beverage processing, marine, and outdoor industrial applications.
- The prominent, heavily contoured black standard handle is purpose-built for maximum tactile grip and immediate visual confirmation of the circuit's active position. This highly ergonomic design ensures plant personnel and maintenance technicians can swiftly and accurately toggle automated equipment states, even when wearing thick protective PPE on a fast-paced factory floor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Physical Attributes
- Cad Overall Depth
- 46 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Pos Information
- 3 positions +/- 45°
- Certificate Agency
- DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0298632279
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.1157624926
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 60 %
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- head for selector switch
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Operator
- stay put
- Type Of Operator 3 Type Of Operator
- stay put
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential In %
- 23
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
Operator Profile 1 Cap Operator Or Lens Colorblack
Carbon Footprint Of The Distribution Phase [A4]0.0022230087, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0057890891, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content28 %
Compatibility CodeZB5
Group Of Productnon illuminated
Main Groupselector switch
Mounting Diameter22.5 mm
Operator Profileblack standard handle
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station NameXALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code"ENVPEP2308008EN"
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)24.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP67 IEC 60529, IP69 IEC 60529, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.1536378183
- Environmental Disclosure
- "ENVPEP2308008EN"
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- "ENVPEP2308008EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308008EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
