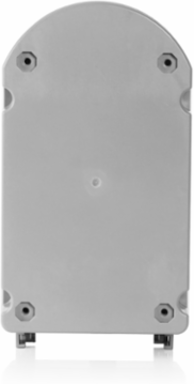

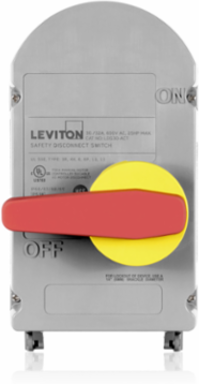

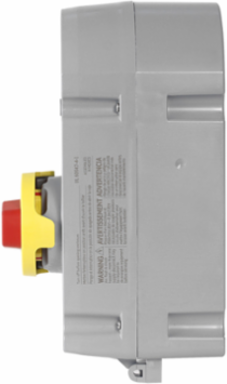

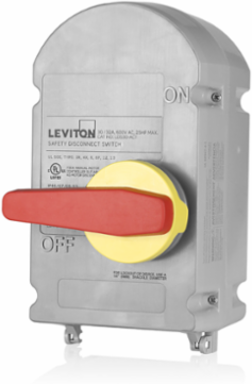

Leviton LDS30-ACT 30/32 Amp Non-Fused Curve Top Safety Disconnect Switch with Auxiliary Contact (N/O) – Powerswitch ®
- MPN: LDS30-ACT
- UPC: 784778776922
- PPN: LEV-LDS30-ACT
CAD
$362.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30/32 Amp 600 VAC Non-Fused Non-Metallic Curve Top Safety Disconnect Switch. IP66/IP67/IP68/IP69/IP69K Rated, NEMA Type 3R, 4X, 6, 6P, 12, 13 Watertight Enclosure, NSF Certified, UL94V-0, RoHS Compliant, Includes Factory Installed Auxiliary Contact (AUXNO) Normally Opened
Features
- Curve top design pushes water and debris towards the side of the device and leaves less area for buildup
- NSF Certified for hygiene requirements in food & beverage processing
- PBT enclosure resists impact, abuse and corrosion
- Watertight, dust-tight, submersible and suitable for high-pressure, high-temperature washdown; Overmold handle provides firm grip, durability and withstands washdown Want this device to communicate with you? The LDS30 is available with Inform Technology, providing 24/7 access to critical device data (including enclosure temperature, liquid accumulation, ground continuity, and more). Know what's going on inside your disconnect without having to open it, improving safety and productivity. VIEW OUR DISCONNECTS WITH INFORM TECHNOLOGY ™ »
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CE
- CE Marked
- ISO
- 20653
- NEMA
- 250
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
IEC60529
Ingress ProtectionNEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
NOMNOM-ANCE
cULuscULus UL60947-4-1A (Suitable as Motor Disconnect)
Material Specifications
- Enclosure Material
- PBT+PC
- Gasket
- Silicone Rubber
- Mounting Feet
- PBT+PC
Enclosure ScrewsStainless Steel
Handle MaterialPBT+PC with TPE Overmold
Mechanical Specifications
- Feature
- Curve Top
- Terminal Accom.
- 18 - 8 AWG
Product IDRatings are permanently marked on device
Terminal IDIn accordance with UL and international conventions
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
UV ResistanceExposed materials are UV stabilized
Electrical Specifications
- Amperage
- 30/32 A
- Dielectric Voltage
- 1000 V plus twice rated voltage for 1 minute
- Short Circuit Current Rating
- 10 kA; Fuse Type J; Fuse Size 60A
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 operating cycles at rated current and voltage
Voltage600 VAC
