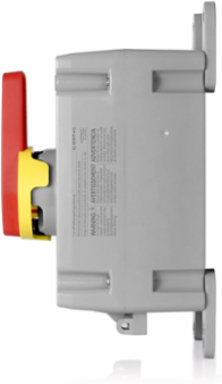

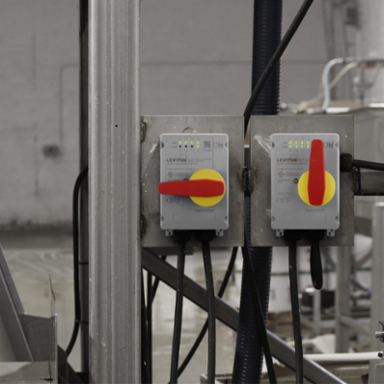

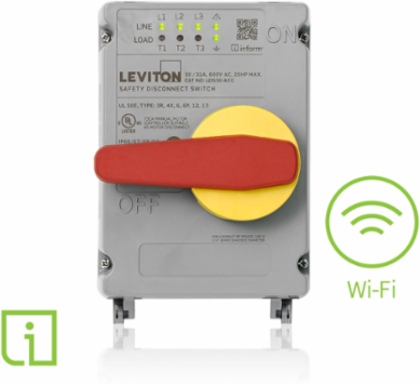

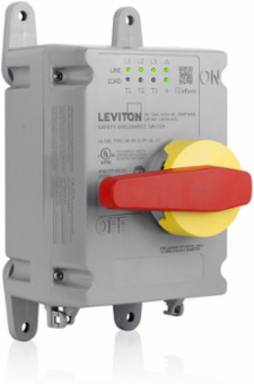

Leviton LDS30-ACC 30/32 Amp Non-Fused Disconnect Switch 600 VAC, Wi-Fi Enabled, Auxiliary Contact
- MPN: LDS30-ACC
- UPC: 078477999387
- PPN: LEV-LDS30-ACC
CAD
$975.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30/32 Amp 600 VAC Non-Fused Non-Metallic Disconnect Switch with Local and Remote Monitoring Inform Technology. Remote monitoring communicated via Wi-Fi requires internet connection. IP66/IP67/IP68/IP69K Rated, NEMA Type 3R, 4X, 6, 6P, 12, 13 Watertight Enclosure, NSF Certified, Includes Factory Installed Auxiliary Contact (AUXNO)
Features

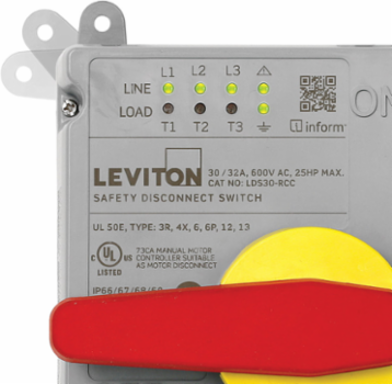

- High visibility LEDs provide visual confirmation of power being delivered to or removed from connected equipment (minimum 10 year LED lifespan)
- Inform app details voltage level readings for troubleshooting without exposing workers to live parts
- Equipment ground monitoring reduces shock hazard by validating the integrity of the ground connection
- How does Inform Technology work? Sensors are embedded into Leviton devices to monitor device health. Data from sensors can be viewed locally or remotely

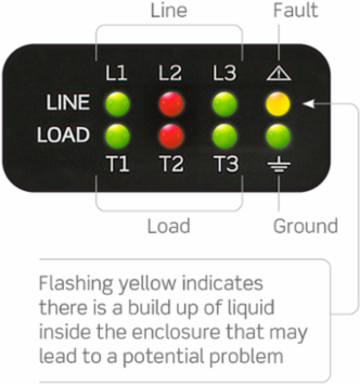

- Local monitoring – Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure

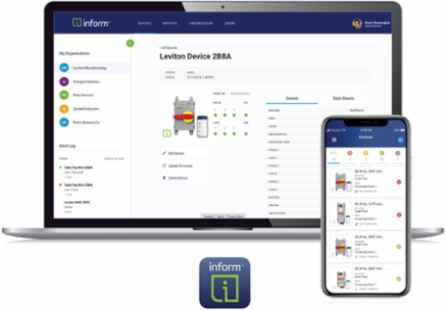

- Remote monitoring via Wi-Fi – includes data like liquid accumulation, enclosure temperature and humidity, line- and load-side voltage values, ground continuity, and more. Access this data 24/7 and get notified of any abnormal operating conditions via the Inform app (mobile and desktop) Compatible with Wi-Fi® 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security. If using a variable frequency drive (VFD), it must be installed between the disconnect switch and the motor. Learn more about our Powerswitch ® industrial switch portfolio >> Learn more about Inform Technology >>
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CE
- CE Marked
- ISO
- 20653
- NEMA
- 250
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
IEC60529
Ingress ProtectionNEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
NOMNOM-ANCE
cULuscULus UL60947-4-1A (Suitable as Motor Disconnect)
Material Specifications
- Enclosure Material
- PBT+PC
- Gasket
- Silicone Rubber
- Mounting Feet
- PBT+PC
Enclosure ScrewsStainless Steel
Handle MaterialPBT+PC with TPE Overmold
Mechanical Specifications
- Device Type
- Safety Disconnect Switch
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 18 - 8 AWG
FeatureLED Indication, Wi-Fi Enabled|Factory Installed Auxiliary Contact
Screw Terminal Torque7 in-lb (0.8 N·m) for Switch/ 15 in-lb (1.7 N·m) for Neutral and Ground
Terminal IDIn accordance with UL and international conventions
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
UV ResistanceExposed materials are UV stabilized
Electrical Specifications
- Amperage
- 30/32 A
- Dielectric Voltage
- 1000 V plus twice rated voltage for 1 minute
- Horsepower Rating
- Single-phase: 2.0 hp @ 120 V/ 5.0 hp @ 208-240 V, 480 V, or 600 V Three-phase: 10.0 hp @ 208-240 V/ 20.0 hp @ 480 V/ 25.0 hp at 600 V
- Voltage
- 600 VAC
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 operating cycles at rated current and voltage
Short Circuit Current Rating10 kA; Fuse Type J; Fuse Size 60A
