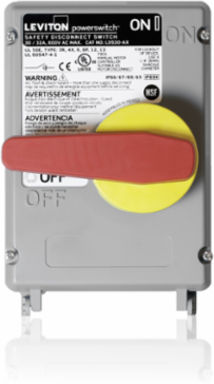

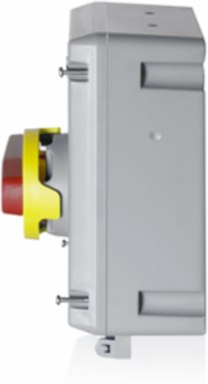

Leviton LDS30-AC 30 Amp Non-Fused Disconnect Switch, 600 Volt, PBT Enclosure, Auxiliary Contact
- MPN: LDS30-AC
- UPC: 078477980859
- PPN: LEV-LDS30-AC
CAD
$416.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp, 600 Volt, Non-Fused Powerswitch Safety Disconnect Switch in Non-Metallic Enclosure with Factory Installed Auxiliary Contact
Features
- Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications. PBT enclosure resists impact, abuse and corrosion Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown NSF Certified for hygiene requirements in food & beverage processing Want this device to communicate with you? The LDS30 is available with Inform Technology, providing 24/7 access to critical device data (including enclosure temperature, liquid accumulation, ground continuity, and more). Know what's going on inside your disconnect without having to open it, improving safety and productivity. View our disconnects with Inform Technology Already have an LDS30, and want with upgrade to Inform Technology? We offer replacement covers - no need to remove the unit! View our replacement covers with Inform Technology
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- CE
- CE Marked
- ISO
- 20653
- NEMA
- 250
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
IEC60529
Ingress ProtectionNEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
NOMNOM-ANCE
cULuscULus UL60947-4-1A (Suitable as Motor Disconnect)
Material Specifications
- Enclosure Material
- PBT+PC
- Gasket
- Silicone Rubber
- Mounting Feet
- PBT+PC
Enclosure ScrewsStainless Steel
Handle MaterialPBT+PC with TPE Overmold
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- In accordance with UL and international conventions
Terminal Accom.18 - 8 AWG
Product Features
- Feature
- Factory Installed Auxiliary Contact
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
UV ResistanceExposed materials are UV stabilized
Electrical Specifications
- Amperage
- 30/32 A
- Dielectric Voltage
- 1000 V plus twice rated voltage for 1 minute
- Short Circuit Current Rating
- 10 kA; Fuse Type J; Fuse Size 60A
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 operating cycles at rated current and voltage
Voltage600 VAC
