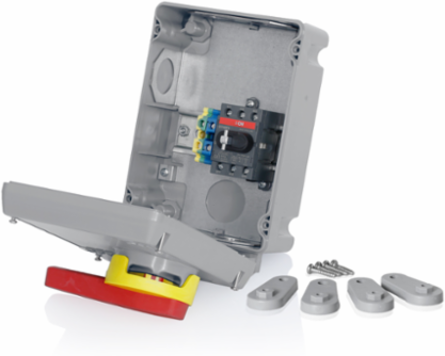

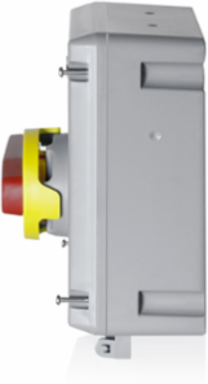

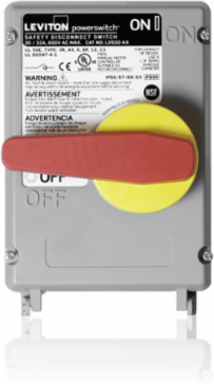

Leviton LDS30-AX 30 Amp Non-Fused Disconnect Switch, 600 Volt, PBT Enclosure, NSF Certified
- MPN: LDS30-AX
- UPC: 078477768020
- PPN: LEV-LDS30-AX
CAD
$369.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 Amp Non-Fused PowerSwitch Disconnect Switch, 600 Volt, Non-Metallic Enclosure
Features

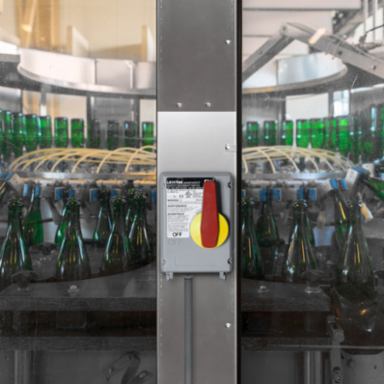

- Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications.
- PBT enclosure resists impact, abuse and corrosion
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown
- NSF Certified for hygiene requirements in food & beverage processing Want this device to communicate with you? The LDS30 is available with Inform Technology, providing 24/7 access to critical device data (including enclosure temperature, liquid accumulation, ground continuity, and more). Know what's going on inside your disconnect without having to open it, improving safety and productivity. Already have an LDS30, and want with upgrade to Inform Technology? We offer replacement covers - no need to remove the unit!
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CE | CE Marked |
|---|---|
| ISO | 20653 |
| NEMA | 250 |
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| IEC | 60529 |
|---|---|
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| NOM | NOM-ANCE |
| cULus | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
Material Specifications
| Enclosure Material | PBT+PC |
|---|---|
| Gasket | Silicone Rubber |
| Mounting Feet | PBT+PC |
| Enclosure Screws | Stainless Steel |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | In accordance with UL and international conventions |
| Terminal Accom. | 18 - 8 AWG |
|---|
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 75°C |
|---|
| UV Resistance | Exposed materials are UV stabilized |
|---|
Electrical Specifications
| Amperage | 30/32 A |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Short Circuit Current Rating | 10 kA; Fuse Type J; Fuse Size 60A |
| Current Interrupting | Certified for full-rated current and voltage |
|---|---|
| Endurance | 6,000 operating cycles at rated current and voltage |
| Voltage | 600 VAC |
