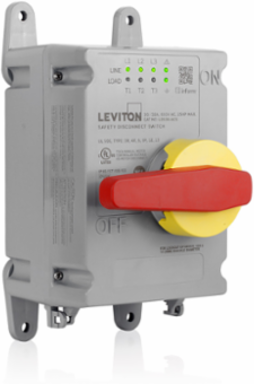

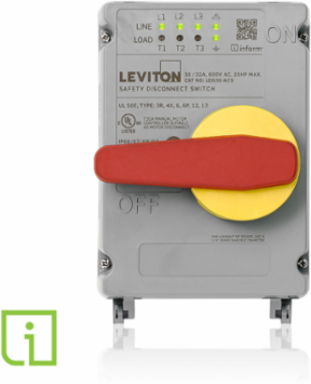

Leviton LDS30-ACS 30/32 Amp Non-Fused Disconnect Switch 600 VAC, IP66/IP67 Rated, Local Monitoring
- MPN: LDS30-ACS
- UPC: 078477999400
- PPN: LEV-LDS30-ACS
CAD
$860.84
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30/32 Amp 600 VAC Non-Fused Non-Metallic Disconnect Switch with Local Monitoring Inform Technology. IP66/IP67/IP68/IP69K Rated, NEMA Type 3R, 4X, 6, 6P, 12, 13 Watertight Enclosure, NSF Certified. Includes Factory Installed Auxiliary Contact (AUXNO)
Features

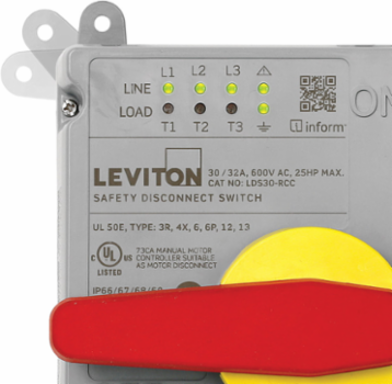

- High visibility LEDs provide visual confirmation of power being delivered to or removed from connected equipment (minimum 10 year LED lifespan)
- Equipment ground monitoring reduces shock hazard by validating the integrity of the ground connection
- How does Inform work? - Sensors are embedded into Leviton devices to monitor device health. Data from sensors can be viewed locally or remotely

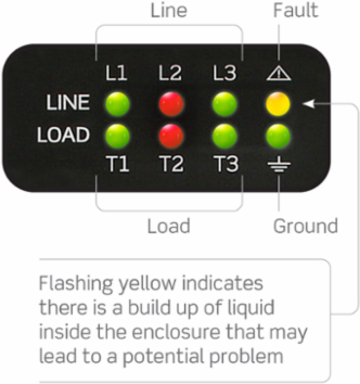

- Local monitoring – Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure
- Improve safety through sensing – by understanding what is going on inside your device without having to open them, you can improve safety, efficiency and productivity If using a variable frequency drive (VFD), it must be installed between the disconnect switch and the motor. Learn more about our Powerswitch ® industrial switch portfolio >> Learn more about Inform Technology >>
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CE | CE Marked |
|---|---|
| ISO | 20653 |
| NEMA | 250 |
| NSF | 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| IEC | 60529 |
|---|---|
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| NOM | NOM-ANCE |
| cULus | cULus UL60947-4-1A (Suitable as Motor Disconnect) |
Material Specifications
| Enclosure Material | PBT+PC |
|---|---|
| Gasket | Silicone Rubber |
| Mounting Feet | PBT+PC |
| Enclosure Screws | Stainless Steel |
|---|---|
| Handle Material | PBT+PC with TPE Overmold |
Mechanical Specifications
| Device Type | Safety Disconnect Switch |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 18 - 8 AWG |
| Feature | LED Indication|Factory Installed Auxiliary Contact |
|---|---|
| Screw Terminal Torque | 7 in-lb (0.8 N·m) for Switch/ 15 in-lb (1.7 N·m) for Neutral and Ground |
| Terminal ID | In accordance with UL and international conventions |
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 75°C |
|---|
| UV Resistance | Exposed materials are UV stabilized |
|---|
Electrical Specifications
| Amperage | 30/32 A |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Horsepower Rating | Single-phase: 2.0 hp @ 120 V/ 5.0 hp @ 208-240 V, 480 V, or 600 V Three-phase: 10.0 hp @ 208-240 V/ 20.0 hp @ 480 V/ 25.0 hp at 600 V |
| Voltage | 600 VAC |
| Current Interrupting | Certified for full-rated current and voltage |
|---|---|
| Endurance | 6,000 operating cycles at rated current and voltage |
| Short Circuit Current Rating | 10 kA; Fuse Type J; Fuse Size 60A |
