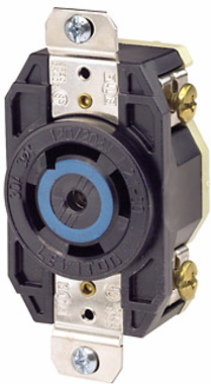

Leviton 2810 30 Amp NEMA L21-30R Flush Mount Locking Receptacle 120/208 Volt, Industrial Grade
Leviton 2810 30 Amp NEMA L21-30R Flush Mount Locking Receptacle 120/208 Volt, Industrial Grade
- MPN: 2810
- UPC: 078477075784
- PPN: LEV-2810
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$104.09/ EA
Description

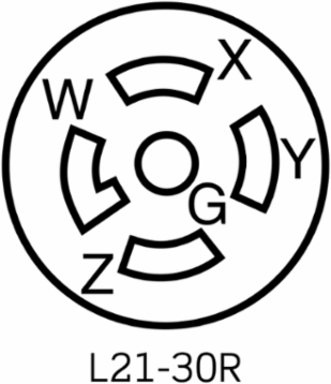

30 Amp, 120/208 Volt 3-Phase Y, NEMA L21-30R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Nylon
- Clamp Nuts
- Nickel-Plated Brass
- Cover Material
- Valox 357
- Ground Contacts
- Brass
- Line Contacts
- Brass
- Terminal Clamps
- Nickel-Plated Brass
Body MaterialNylon
ColorBlack
Face MaterialNylon
Grounding ScrewChromated Brass
Strap MaterialNickel-Plated Brass
Terminal ScrewsChromated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Torque Range14-16 in-lbs
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- V-0-Max
- Warranty
- Limited Lifetime Warranty
Device TypeLocking Receptacle
Warranty
- Warranty
- Limited Lifetime Warranty
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 5
Current LimitingFull Rated Current
GroundingGrounding
Pole4
Voltage120/208 VAC
