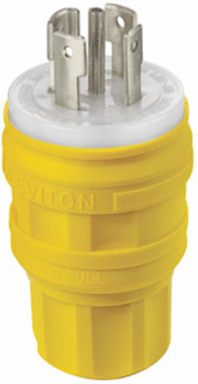

Leviton 28W81 Wetguard Watertight 30 Amp Locking Plug, NEMA L21-30P, IP69K, Yellow
- MPN: 28W81
- UPC: 078477969052
- PPN: LEV-28W81
CAD
$136.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

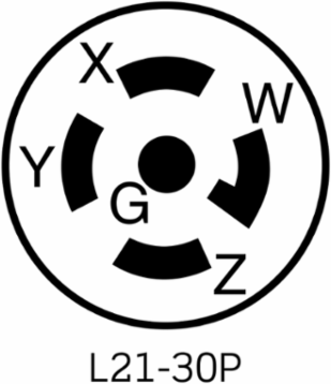

30 Amp, 120/208 Volt 3-Phase Y, NEMA L21-30P, 4P, 5W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Stainless Steel 300
- Body Interior
- Nylon
- Bushing
- Santoprene TPV
- Terminal Screws
- Electroless Nickel-coated Brass
Blades/ContactsNickel-Plated Brass
Body MaterialEPTR Rubber
Compression Nut, Strain ReliefNylon
Wire ModuleNylon
Mechanical Specifications
- Cord Grip Range (in)
- .625-1.125
- Terminal Accom.
- #12 to #8
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Brand
- Wetguard
- Device Type
- Locking Plug
ColorYellow
Standards and CertificationsUL/CSA
Environmental Specifications
- Environment
- Wet
- IP Rating
- IP66, IP67, IP69K
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 5
Current LimitingFull Rated Current
GroundingGrounding
Pole4
Voltage120/208 VAC
