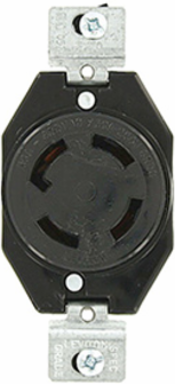

Leviton 3430-G 30 Amp 250 Volt Flush Mount Locking Receptacle, Industrial Grade, 3 Pole 4 Wire
- MPN: 3430-G
- UPC: 078477821589
- PPN: LEV-3430-G
CAD
$115.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp 250 Volt Flush Mount Locking Receptacle, Industrial Grade, 3 Pole 4 Wire
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- Limited Lifetime Warranty
- CSA C22.2 No. 42
- File LR-406
- ANSI
- C-73
NOM057
UL498File E13399
NEMAWD-6
Material Specifications
- Line Contacts
- Brass .040 Thick
- Color
- Black
- Base Material
- Nylon
- Terminal Screws
- Brass 10-32
Face MaterialNylon
Strap MaterialNickel-Plated Brass
Grounding ScrewBrass 8-32
YokeNickel-Plated Brass .050 Thick
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.
- 18-10 AWG
Product IDRatings and NEMA I.D. permanently marked on device
TerminationBack & Side
Product Features
- Color
- Black
Country Of OriginMexico
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 250 VAC
Wire4
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Current LimitingFull Rated Current
GroundingGrounding
