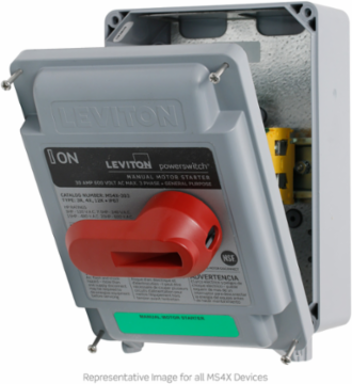

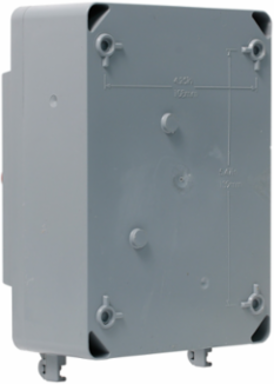

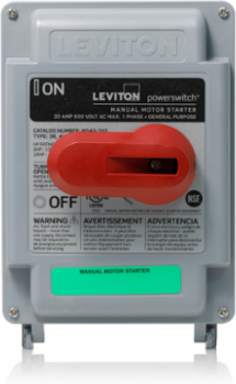

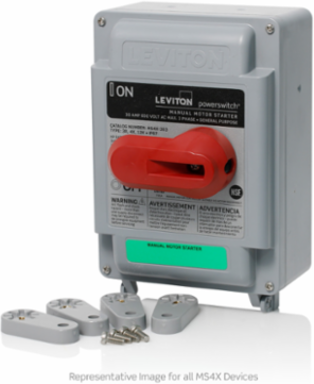

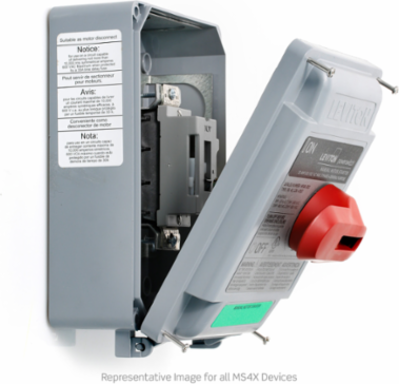

Leviton MS4X-302 30 Amp 600 Volt 2-Pole Non-Fused Manual Motor Controller, Type 4X, IP67-rated
- MPN: MS4X-302
- UPC: 078477480328
- PPN: LEV-MS4X-302
CAD
$174.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp, 600 Volt, 2-Pole, Non-Fused Manual Motor Controller, Suitable as Motor Disconnect, Type 4X Thermoplastic Enclosure, IP67-Watertight, NSF Certified
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NOM
- NOM-ANCE
- UL 60947-4-1
- supersedes UL 508
- cUL per CSA C22.2 No. 111
- File #E63969
NEMAWD-1 & WD-6
NSF14159-1 Meat & Poultry Processing Equipment
Warranty2-Year Limited
Material Specifications
- Contacts
- Silver-Cadmium .031 Thick
- Terminal Screws
- Nickel-Plated Brass 10-32
EnclosureThermoplastic Polyester
Mechanical Specifications
- Crush Test
- 100 lbs
- Mold Stress Relief
- 70ºC for 7 hours
- Terminal Accom.
- #10-#8 AWG
- Termination
- Switch Mechanism Back & Side
- xxx
- Remains in place with 20lb push
Impact1.2 lb ball dropped from 5 ft
Product IDRatings are permanently marked on device
Terminal IDT1, T2, L1, L2 marked on back of switch mechanism
Torque Range20 inch pounds
Product Features
- Device Type
- Enclosed Switch
Environmental Specifications
- Dust
- Type 12K per UL 50
- Hosedown
- Type 4X per UL 50
Enclosure RatingType 4X
RainType 3R per UL 50
Electrical Specifications
- Amperage
- 30 A
- Endurance
- 6,000 cycles inductive motor type load
- Grounding
- Non-Grounding
- Pole
- 2
- Voltage
- 600 VAC
Dielectric VoltageWithstands 2200V for 1 min.
FlammabilityRated V-0 per UL 94
Operating Temperature-40°C to 60°C
Temperature Rise50ºC Max at full rated current
AC Horsepower Ratings
- HP Rating
- 2HP-120V 5HP-240V 10HP-480V 15HP-600V
