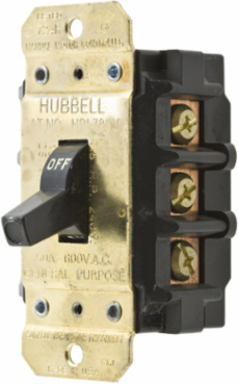

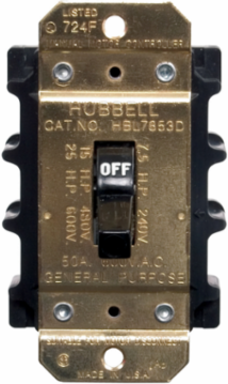

Hubbell Wiring Device-Kellems HBL7853D Industrial Grade Manual Motor Controller, 3 Pole, 50A 600V AC, Side Wired
- MPN: HBL7853D
- UPC: 783585202877
- PPN: HBL-HBL7853D
- UNSPSC: 39121521
CAD
$291.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 50A 600V AC, Side Wired Only
Features
- Optional side guard for close wall applications
- Strong on/off action with quick-make slow break operation
- Thermoset body provides superior dielectric strength
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.418 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Standards - RoHS Compliance Status
- CM
- Number of Poles
- 3 Pole
- Standard
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Voltage Rating
- 600 VAC
- Weight
- 0.45 lb.
- General Literature Asset 1 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- General Literature Asset 3 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Connectivity
- Side Wired
- Display Size
- Standard Sized Product
- Load Capacity
- Inductive
- Operating Cycles
- 10,000 Cycles Minimum
- Phase
- Three Phase
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A240
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 13.500 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating50 A
Horsepower - Maximum25
PerformanceElectrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
Current Rating50
Special FeaturesStandard Product
TypeSide Wire
Voltage Rating Description600 VAC
Engineering Drawing 1 Display TextHBL7853D AutoCAD Drawing
General Literature Asset 2 Display TextCircuit-Lock® Motor Disconnects
Amperage Rating50 A
Dielectric Strength2,200V AC minimum for 1 minute
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles3 Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wattage30000
Description - InvoiceDISCONNECT 50A 600V 3P DISC SW
Harmonization Code8536509040
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesStandard Toggle
BOX SIZE5.048x12.488x4.048 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585202877
Case - Total Units30 EA
Each - Pack DescriptionEach
Pallet Height50.000 in
Pallet Weight1012.000 lb.
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- Yes
