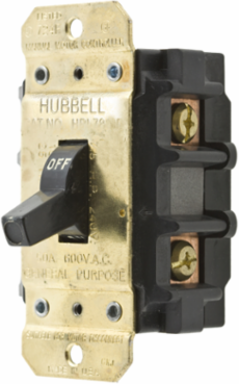

Hubbell Wiring Device-Kellems HBL7852D Industrial Grade Manual Motor Controller, 50A 600V AC, 2 Pole, Side Wired
Hubbell Wiring Device-Kellems HBL7852D Industrial Grade Manual Motor Controller, 50A 600V AC, 2 Pole, Side Wired
- MPN: HBL7852D
- UPC: 783585202860
- PPN: HBL-HBL7852D
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$212.34/ EA
Description
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Two Pole, 50A 600V AC, Side Wired Only
Features
- Optional side guard for close wall applications
- Strong on/off action with quick-make slow break operation
- Thermoset body provides superior dielectric strength
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Width
- 2.500 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Current Rating
- 50
- Special Features
- Standard Product
- Type
- Side Wire
- Voltage Rating Description
- 600 VAC
- Engineering Drawing 1 Display Text
- HBL7852D AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Amperage Rating
- 50 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number Of Poles
- 2 Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 30000
- Description - Invoice
- DISCONNECT 50A 600V 2P DISC SW
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 6.107 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 1333.200 lb.
Current / Amperage Rating50 A
Horsepower - Maximum15
PerformanceElectrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
Number of Poles2 Pole
StandardCSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
Voltage Rating600 VAC
Weight0.5 lb.
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
ConnectivitySide Wired
Display SizeStandard Sized Product
Load CapacityInductive
Operating Cycles10,000 Cycles Minimum
PhaseSingle Phase
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
ConstructionFabricated
SeriesStandard Toggle
BOX SIZE5.200x12.600x4.300 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585202860
Case - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585202869
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
