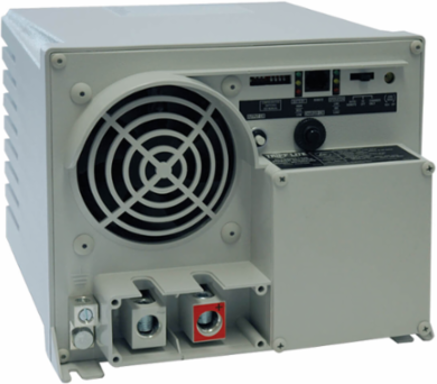

Tripp Lite RV1250ULHW 1250W PowerVerter RV Inverter/Charger with Hardwire Input/Output

MPN: RV1250ULHW
UPC: 037332121691
PPN: TRP-RV1250ULHW

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1508.77/ EA

Qty:

Loading add to cart quantity...

Description

1250W PowerVerter RV Inverter/Charger with Hardwire Input/Output

Features

12V DC or 120V AC input; 120V AC output (hardwired)
1250 watts continuous and 2500 watts DoubleBoost inverter output
3 stage, 14/55 amp selectable wet/dry cell battery charger
Built-in Isobar® premium AC surge protection and Auto Transfer Switching option for battery backup / UPS operation
Tested to power inverter standards UL458 (USA) and CSA (Canada)
High reliability large-transformer design with protected DC and AC wiring terminals
30-month limited warranty

Specifications

Surge / Noise Suppression

AC Suppression Joule Rating: 600

Battery

Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet or gel type batteries

Battery Pack Accessory (Optional): 98-121 sealed lead acid battery (optional)

LVC (Low Voltage Cut-Off): 10V DC +/-3%

DC System Voltage (VDC)12

Battery Charge14A / 55A (selectable)

Expandable RuntimeYes

Certifications

Certifications: Tested to UL458 (USA) and CSA (Canada)

Physical

Cooling Method: Multi-speed fan

Material of Construction: Polycarbonate

Shipping Weight (lbs.): 25.00

Unit Weight (lbs.): 23.3

Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Shipping Dimensions (hwd / in.)12.60 x 10.50 x 10.70

Unit Dimensions (hwd / in.)7 x 8.75 x 9

User Interface, Alerts & Controls

Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.

Switches3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode.

Input

Nominal Input Voltage(s) Supported: 120V AC

Maximum Input Amps / Watts: DC INPUT: Full continuous load - 95A at 12V DC. AC INPUT: 20 amps at 120V AC with full inverter and charger load (12A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output lo

Input Cord Length Details: DC INPUT: User supplies cabling. 4 gauge or larger (see manual). AC INPUT: hardwire

Voltage Compatibility (VDC): 12

Recommended Electrical ServiceDC INPUT: Requires 12V DC input source capable of delivering 95A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire

Input Connection TypeDC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: hardwire

Voltage Compatibility (VAC)120

Output

Frequency Compatibility: 60 Hz

Output (Watts): 1250

Output Receptacles: Hardwire

Peak Output Capacity (Watts): 2500

Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)

Pure Sine Wave OutputNo

Nominal Output Voltage(s) Supported120V

Continuous Output Capacity (Watts)1250

Output Voltage RegulationLINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).

Overload ProtectionIncludes 12A input breaker dedicated to the charging system and 20A output breaker for AC output loads

Environmental

Relative Humidity: 0-95% non-condensing

Overview

UPC Code: 037332121691

Special Features

Load Sensing: Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level.

Warranty

Product Warranty Period (U.S. & Canada): 30-month limited warranty

Line / Battery Transfer

Transfer Time (Line Power to Battery Mode): 16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)

High Voltage Transfer to Battery Power: In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)

Low Voltage Transfer to Battery PowerIn AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
