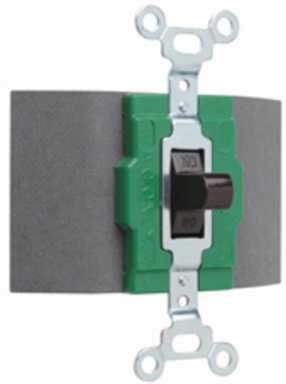

Pass & Seymour 1228 30A Double Pole Double Throw Switch, Brown, 120/277V, 3.281 Inch Height, Matte Finish
- MPN: 1228
- UPC: 785007122800
- PPN: P-S-1228
CAD
$103.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
30A Double Pole Double Throw Switch, Brown, 120/277V, 3.281 Inch Height, Matte Finish
Features
- Oversize silver alloy contacts for long life and better heat dissipation.
- Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
- Fiber terminal insulation barriers standard.
- Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
- Bodies, covers, and toggles molded of durable nylon.
- Single Pole-Double Throw and Double Pole-Double Throw.
- Locking Switches supplied with one 1498-NT key.
- Normally open.
- For covering patents, see https://www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, visit www.legrand.us/electrical-wiring-devices/wall-plates.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.469 in |
|---|---|
| Color | Brown |
| Finish | Matte |
| Country of Origin | Mexico |
| Load Type | CFL |
| Amperage | 30.0 A |
| Voltage | 120 VAC |
| Features | Durable |
| Number of Gangs | 1 |
| Switch Type | Toggle |
| Indoor/Outdoor | Indoor |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Requires Neutral Wire | Yes |
| Application Sector | Commercial |
| Connection Location | Side Only |
| Wire Connection Type | Screw Terminals |
| Special Features | Oversized silver alloy contacts, side wired, can be mounted in standard device box\ |
| Height | 3.281 in |
|---|---|
| Width | 1.5 in |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Load Type | LED |
| Load Type | Xenon |
| Voltage | 277 VAC |
| Load Type | Halogen |
| Standard | UL Listed |
| Load Type | Universal |
| Load Type | Fluorescent |
| Mounting Type | Wall Box |
| Type | Manual Controller |
| Throw Type | Double Throw |
| Number of Poles | Double Pole |
| Application Sector | Industrial |
| Load Rating | 30 A @ 120/277 VAC |
| Warranty Type | 1-Year Limited Warranty |
| Terminal Accommodation | #14 AWG - #10 AWG |
