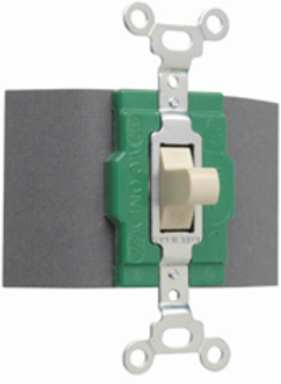

Pass & Seymour 1255 30A Single Pole Double Throw Manual Control Switch, UL/cULus/CSA Listed
- MPN: 1255
- UPC: 785007125504
- PPN: P-S-1255
CAD
$151.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
30A Single Pole Double Throw Manual Control Switch, UL/cULus/CSA Listed
Features
- Oversize silver alloy contacts for long life and better heat dissipation.
- Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
- Fiber terminal insulation barriers standard.
- Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
- Bodies, covers, and toggles molded of durable nylon.
- Single Pole-Double Throw and Double Pole-Double Throw.
- Locking Switches supplied with one 1498-NT key.
- Normally open.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Finish
- Matte
- Product Line
- Pass & Seymour
- Load Type
- LED
- Load Type
- Xenon
- Voltage
- 277 VAC
- Load Type
- Halogen
- Standard
- UL Listed
- Load Type
- Universal
- Load Type
- Fluorescent
- Load Type
- Incandescent
- Number of Switches
- 1.0
- Wall Plate Included
- No
- Requires Neutral Wire
- Yes
- Application Sector
- Commercial
- Connection Location
- Back Only
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #10 AWG
ColorBrown
MaterialThermoplastic
Load TypeCFL
Amperage30.0 A
Voltage120 VAC
FeaturesDurable
Number of Gangs1
Switch TypeToggle
Indoor/OutdoorIndoor
TypeTamper-Resistant
Mounting TypeWall Box
TypeManual Controller
Throw TypeDouble Throw
Number of PolesSingle Pole
Application SectorIndustrial
Load Rating20 A @ 120/277 VAC
Warranty Type1-Year Limited Warranty
Special FeaturesOversized silver alloy contacts, side wired, can be mounted in standard device box\
