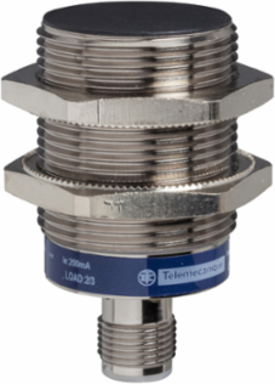

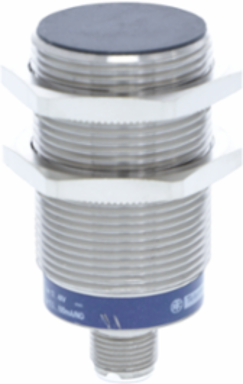

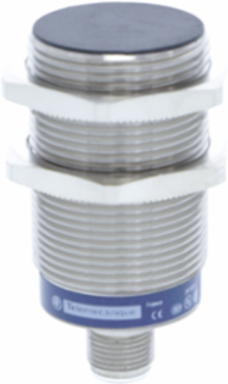

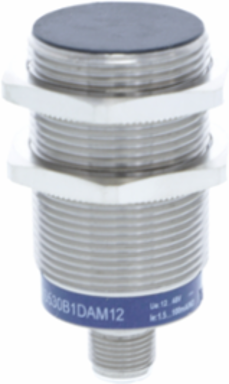

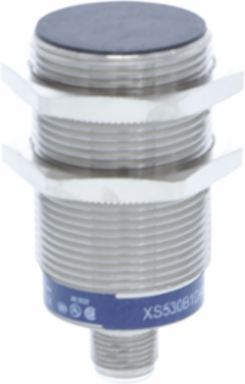

Telemecanique Sensors XS530B1DAM12 Inductive proximity sensors XS, inductive sensor XS5 M30, L74mm, brass, Sn10mm, 12...48 VDC, M12
- MPN: XS530B1DAM12
- PPN: TES-XS530B1DAM12
- UNSPSC: 39122230
CAD
$152.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- metal
- Wiring Technique
- 2-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 10 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M30
[Us] Rated Supply Voltage12...48 V DC
Type Of Output Signaldiscrete
Sensor NameXS5
Size62 mm
Ip Degree Of ProtectionIP67 conforming to IEC 60529 || IP69K conforming to DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma1.5...100 mA DC overload and short-circuit protection
Output Circuit TypeDC
Complementary
- Maximum Delay Response
- 0.3 ms
- Operating Zone
- 0-8 mm
- Threaded Length
- 52 mm
- Length
- 74 mm
- Maximum Residual Current
- 0.5 mA open state
- Thread Type
- M30 x 1.5
- Maximum Delay Recovery
- 0.3 ms
- Supply Voltage Limits
- 10-58 V DC
- Enclosure Material
- Nickel Plated Brass
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<4 V closed)
MarkingCE
Net Weight0.145 kg
Switching Frequency<= 2000 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Detection Facefrontal
Front MaterialPPS
Environment
- Product Certifications
- CCC || UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1110045
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
