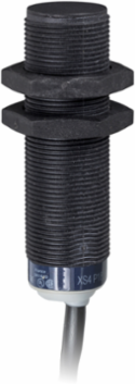

Telemecanique Sensors XS4P18MA230 Inductive proximity sensors XS, inductive sensor XS4 M18, L62mm, PPS, Sn8mm, 24...240VAC/DC, cable 2 m
Telemecanique Sensors XS4P18MA230 Inductive proximity sensors XS, inductive sensor XS4 M18, L62mm, PPS, Sn8mm, 24...240VAC/DC, cable 2 m
- MPN: XS4P18MA230
- PPN: TES-XS4P18MA230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$177.93/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 8mm. Two-wire, AC or DC supply, 24V to 240V, NO function. This sensor is ECOLAB certified.
Specifications
Environment
- Product Certifications
- CCC || Ecolab || CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Height
- 18 mm
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <5.5 V closed)
- Marking
- CE
- Net Weight
- 0.1 kg
- Switching Frequency
- <= 2000 Hz DC || <= 25 Hz AC
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 40 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- PPS
- Front Material
- PPS
Maximum Delay Response0.2 ms
Operating Zone0-6.4 mm
Threaded Length52 mm
Length62 mm
Maximum Residual Current0.6 mA open state
Thread TypeM18 x 1
Maximum Delay Recovery0.2 ms
Supply Voltage Limits20-264 V AC/DC
Detection Facefrontal
Cable Composition2 x 0.34 mm²
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS4
- Size
- 62 mm
- Ip Degree Of Protection
- IP68 double insulation IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...200 mA DC || 5...300 mA AC
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length2 m
Materialplastic
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance8 mm
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designcylindrical M18
