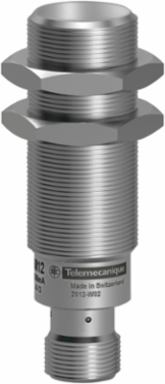

Telemecanique Sensors XS918R1PAM12 Inductive proximity sensors XS, inductive sensor XS9 M18, L64mm, full SS 303, Sn10 mm, 12...24 VDC, M12
- MPN: XS918R1PAM12
- PPN: TES-XS918R1PAM12
CAD
$261.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. This IP 68 sensor is dedicated to harsh industrial environments. It operates from - 25°C to + 70°C . It is a cylindrical sensor, flush mountable in metal, diameter 18mm, threaded M18 x 1. It features a cylindrical metal case and a M12 connector. It has a sensing distance of 10mm. Three-wire, DC supply, 12V to 24V with protection against reverse polarity, NO function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | male connector M12, 4 pins |
|---|---|
| Discrete Output Type | PNP |
| Type Of Output Signal | discrete |
| Sensor Name | XS9 |
| Wiring Technique | 3-wire |
| Series Name | Application |
| [Sn] Nominal Sensing Distance | 10 mm |
| Switching Capacity In Ma | <= 200 mA overload and short-circuit protection |
| Enclosure Material | stainless steel 303 |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Inductive proximity sensors XS |
| Size | 64 mm |
| Ip Degree Of Protection | IP69K DIN 40050 || IP68 IEC 60529 |
| Body Type | single piece body |
| Sensor Type | inductive proximity sensor |
| Sensor Design | cylindrical M18 |
| Device Application | harsh environment application |
Complementary
| Current Consumption | <= 10 mA no-load |
|---|---|
| Maximum Delay Response | 6E-05 ms |
| Repeat Accuracy | <= 5 % of Sr |
| Maximum Voltage Drop | <2 V closed) |
| Marking | CE |
| Material | stainless steel 303 |
| Maximum Residual Current | 0.1 mA open state |
| Thread Type | M18 x 1 |
| Differential Travel | 1...15 % of Sr |
| Maximum Delay First Up | 40 ms |
| Detector Flush Mounting Acceptance | flush mountable |
| Front Material | stainless steel 303 |
| Height | 18 mm |
|---|---|
| Status Led | output state 1 LED yellow) |
| Operating Zone | 0-8 mm |
| Threaded Length | 42 mm |
| Length | 64 mm |
| Net Weight | 0.051 kg |
| Switching Frequency | <= 300 Hz |
| Sensing Range | > 8...15 mm |
| Maximum Delay Recovery | 0.015 ms |
| Supply Voltage Limits | 10-30 V DC |
| Detection Face | frontal |
| Output Circuit Type | DC |
Environment
| Product Certifications | cULus |
|---|---|
| Vibration Resistance | 25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 30 gn 11 msIEC 60068-2-27 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
