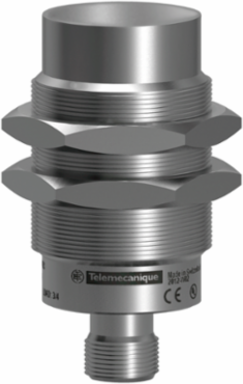

Telemecanique Sensors XS930S4PAM12 Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn40 mm, 12...24 VDC, M12
Telemecanique Sensors XS930S4PAM12 Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn40 mm, 12...24 VDC, M12
- MPN: XS930S4PAM12
- PPN: TES-XS930S4PAM12
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$299.08/ EA
Description
This product is part of the XS range, an offer of inductive proximity sensors. This inductive proximity sensor in XS9 cylindrical M30 design. It is non-flush mountable and has a frontal detection face. It supports 40mm nominal sensing distance and 1 normally opened PNP discrete output. It is furnished with 4-pin M12 male connector for electrical connection and 1 LED for output state. It is an inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ≤10mA and a switching frequency of ≤90Hz. It is an IP68 and IP69K rated product. The enclosure is made of stainless steel 316L. Its dimensions are 64mm (Length) x 30mm (Height) and weighs 0.145kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, Ecolab and CULus. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.
Specifications
Environment
- Product Certifications
- Ecolab || cULus
- Vibration Resistance
- 25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-85 °C
Ambient Air Temperature For Operation-25-85 °C
Shock Resistance30 gn 11 msIEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 6E-05 ms
- Repeat Accuracy
- <= 5 % of Sr
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Material
- stainless steel 316L
- Maximum Residual Current
- 0.1 mA open state
- Thread Type
- M30 x 1.5
- Differential Travel
- 1...15 % of Sr
- Maximum Delay First Up
- 40 ms
- Detector Flush Mounting Acceptance
- non flush mountable
- Front Material
- stainless steel 316L
Height30 mm
Status Ledoutput state 1 LED yellow)
Operating Zone0-32 mm
Threaded Length32 mm
Length64 mm
Net Weight0.145 kg
Switching Frequency<= 90 Hz
Sensing Range> 0.59...1.57 in (> 15...40 mm)
Maximum Delay Recovery0.015 ms
Supply Voltage Limits10-30 V DC
Detection Facefrontal
Output Circuit TypeDC
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS9
- Wiring Technique
- 3-wire
- Series Name
- Application
- [Sn] Nominal Sensing Distance
- 40 mm
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Enclosure Material
- stainless steel 316L
- Device Application
- food and beverage
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Size64 mm
Ip Degree Of ProtectionIP68 conforming to IEC 60529 || IP69K
Body Typesingle piece body
Sensor Typeinductive proximity sensor
Sensor Designcylindrical M30
Market Segmentpharmaceutical
