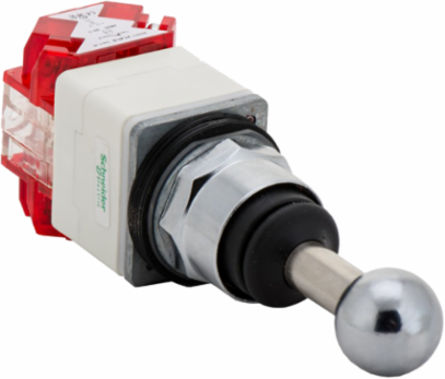

Schneider Electric 9001K73 Harmony Joystick Controller Head 30mm Metal Stay Put, IP66
- MPN: 9001K73
- UPC: 785901236887
- PPN: SCH-9001K73
CAD
$327.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001K73 is a joystick controller, 3 positions stay put, without contact. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- NEMA, UL 508
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- without contact block
- Mounting Diameter
- 30 mm
- Operator Direction Information
- 2 directions
- Overvoltage Category
- II conforming to IEC 61140
- Product Or Component Type
- head for joystick controller
- Range Of Product
- Harmony 9001K
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 50 gn IEC 60068-2-27
- Type Of Operator
- stay put
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Code9001K
Device Short Name9001K
Operating Positionany position
Operator Profile80 mm long operating shaft
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shape Of Signaling Unit Headoctagonal
Sustainable PackagingNo
Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2503027EN
Package Weight(Lbs)240.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP65/IP66
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- head for joystick controller
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000632
ETIM 9EC000632
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
