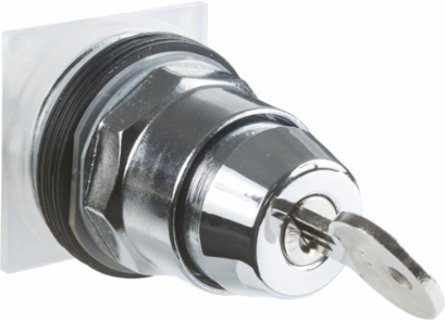

Schneider Electric 9001KS43K5 Harmony 9001K Key Selector Switch Head, 30 mm, Metal, 3 Positions, IP66
- MPN: 9001KS43K5
- UPC: 785901066613
- PPN: SCH-9001KS43K5
CAD
$178.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, black key operated selector switch with C cam has 3 positions, operates with a stay-put mechanism. It has a chromium-plated metal bezel and the key can be withdrawn on center position. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Type Of Operator
- stay put
- Device Short Name
- 9001K
Operator Profilekey switch
Product Or Component Typehead for key selector switch
Complementary
- Key Withdrawal Position
- center
- Key Number
- E10
- Cam Profile
- 3
- Operator Position Information
- 3 positions
- Mounting Diameter
- 30 mm
- Type Of Operator
- stay put
- Net Weight
- 0.234 kg
- Type Of Keylock
- E10
Contacts Type And Compositionwithout contact block
Bezel Materialmetal
Product Compatibility9001KA1 side 1 or 2
Mechanical Durability500000 cycles
Operator Profilekey switch
Shape Of Signaling Unit Headoctagonal
Size30 mm
Device Presentationbasic element
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || IEC 60947-5-1 || IEC 60947-1
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 61140
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
