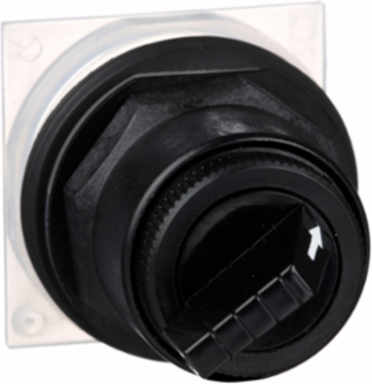

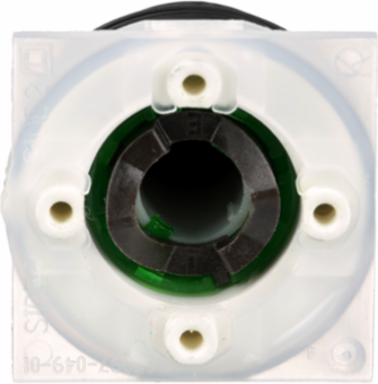

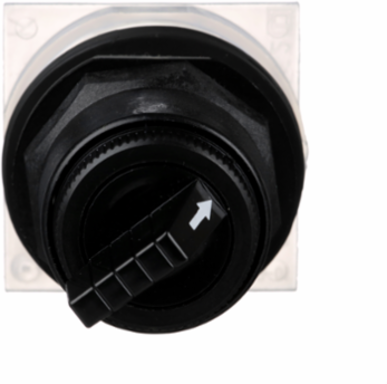

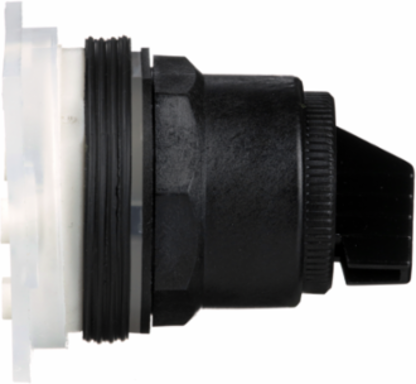

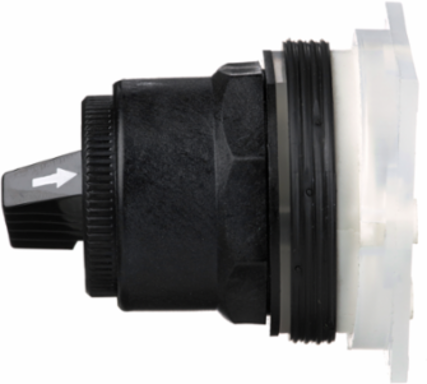

Schneider Electric 9001SKS11B Harmony Head for Selector Switch, 30mm, 2 Positions, IP66
- MPN: 9001SKS11B
- UPC: 785901524366
- PPN: SCH-9001SKS11B
CAD
$68.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, black selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typehead for selector switch
Complementary
- Contacts Type And Composition
- without contact block
- Cam Profile
- 5
- Mounting Diameter
- 30 mm
- Type Of Operator
- stay put
- Size
- 30 mm
Bezel Materialplastic
Operator Position Information2 positions
Operator Profilestandard handle
Cap/Operator Or Lens Colourblack
Device Presentationbasic element
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Protective TreatmentTC
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120820EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
