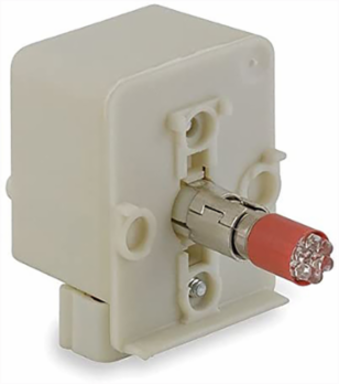

Square D 9001KM7LR 30mm Push Button, Types K, SK or KX, light module, red LED lamp, 220/240 VAC 50/60 Hz

MPN: 9001KM7LR
UPC: 785901877127
PPN: SCH-9001KM7LR

$218.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This transformer light module is designed for 220/240 VAC 50/60 Hz circuits. Light modules have either an incandescent or an LED lamp. This light module has a red LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or red lens cap. These light modules are UL Listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Important Information Attributes

Customizable	1, no
Range Of Product	Harmony 9001K, Harmony 9001SK
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Product Kit Identifier	N
Device Short Name	9001K
Light Block Supply	direct via integral transformer
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Sustainable Packaging	Yes
Pep Code	ENVPEP2503027EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809026

Product Or Component Type	light module, light block
Certificate Agency	UL Listed, CSA, NEMA
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bulb Base	BA 9s
Electrical Shock Protection Class	class II conforming to IEC 61140
Light Source	LED (bulb included)
Protective Treatment	TC
Shock Resistance	50 gn IEC 60068-2-27
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage	240 V AC 60 Hz220 V AC 50 Hz
Package Weight(Lbs)	113.398 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -13-158 °F, -25-70 °C, -13-158 °F
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP10 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
