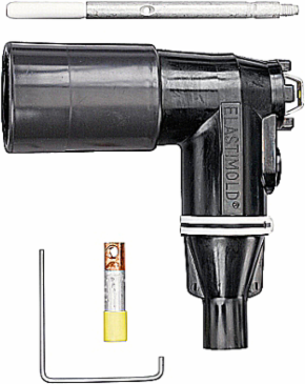

Thomas & Betts 375LR-K5250-SG3 Loadbreak Elbow Connector
- MPN: 375LR-K5250-SG3
- UPC: 075114314442
- PPN: T-B-375LR-K5250-SG3
CAD
$923.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kv, 200 Amp, Loadbreak, Elbow, with Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, Bi-Metal Lug, Conductor Size 2/0 Compressed/Stranded or 3/0 Compact/Solid.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size 2/0 Compressed/Stranded or 3/0 Compact/Solid.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector
Application35kV, 200 Amps
SizeCable Insulation Diameter 1.090 inch to 1.310 inch.
MaterialHousing - EPDM Rubber
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
