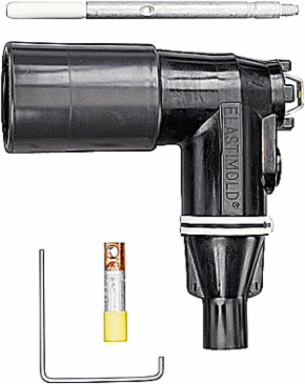

Thomas & Betts 375LR-K5260-SG3 Loadbreak Elbow Connector
- MPN: 375LR-K5260-SG3
- UPC: 075114332330
- PPN: T-B-375LR-K5260-SG3
CAD
$928.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV, 200 Amp, Loadbreak Elbow with out Test Point, Cable Insulation Diameter 1.090 to 1.465 inches, Bi-Metal, Conductor Size 260 - 3/0 Stranded/Compressed or 4/0 Solid/Compact. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring. |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01. |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| Consist Of | 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Elbow Connector |
| Application | 35kV, 200 Amps |
| Size | Cable Insulation Diameter 1.090 inch to 1.310 inch. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 35kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 10.5x19.12x12.5 |
|---|
