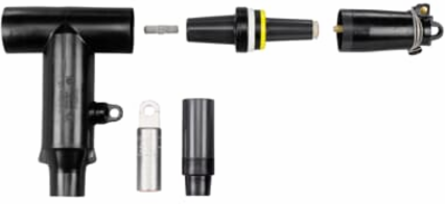

Thomas & Betts 656ETP-M0400-DRG 15KV 600A ETP ELBOW KIT TP M0400DRG
- MPN: 656ETP-M0400-DRG
- UPC: 075114402842
- PPN: T-B-656ETP-M0400-DRG
- UNSPSC: 39121421
CAD
$1184.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 900 kcmil or Compacted Solid 1000 kcmil.
Features
- Capacitive Test Point, Insulated Cap
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- 10.88 inch from Bottom to Center of Bushing, 8.34 inch wide
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- All Weather Conditions
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application600 Amps, 15kV
StandardANSI/IEEE Standard 386
Conductor Range900 STR/COMPR kcmil , 1000 SOL/COMPT kcmil
Voltage Rating15 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
